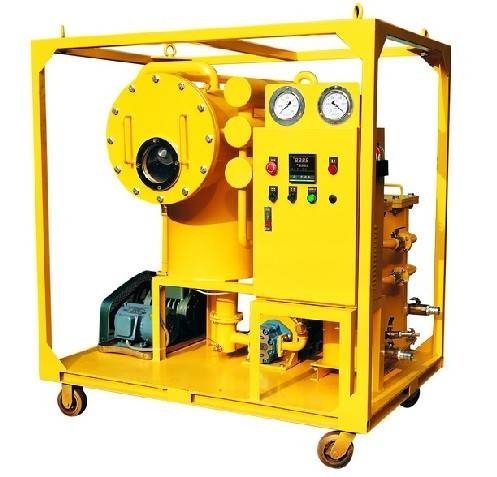

transformer oil treatment plants
產品型號：DVTP
產品分類：自動化設備/產業機械 / 特殊工作機械 / 金屬線材之其他加工機
產品特色
Our transformer oil treatment plants use vacuum dehydration technology, they are suitable for preparation of new insulating oil and purification of used oils for reuse.
Who might need this machine?
1. Transformer and capacitor manufacturers
2. Transformer Service Companies
3. Transformer Owners
The series capacity is from 600 L/H to 18,000 L/H. Trailer-type portable plants are available to allow on-site servicing of transformer oil. Plants are also designed for drying out of the coils of transformer by hot oil circulation and oil filling under vacuum.
The plant mainly consists of 4 systems. OIL TRANSFER SYSTEM, HEATING SYSTEM, FILTRATION SYSTEM AND VACUUM SYSTEM, which are interlocked to enable the plants to work automatically, little attention is required once the purifier is started.
Typically insulating fluid is contaminated in the following ways:
* Particles including fibres, rust and colloidal carbon.
* Free and dissolved water.
* Gases produced by fluid ageing, equipment failure and arc suppression in switchgear.
* Chemical products caused by oxidation, as well as cross contamination by other products.
產品規格
transformer oil treatment plant | lubricating oil purification system | turbine oil conditioner | oil pillow tank | transformer evacuation system | oil dielectric strength tester | transformer oil purifier
|
|
After one pass |
After three passes |
|
Water content |
< 5 ppm |
< 3 ppm |
|
Gas content |
< 0.2% |
< 0.1% |
|
Vacuum inside vessel |
< 2 mbar |
< 0.8 mbar |
