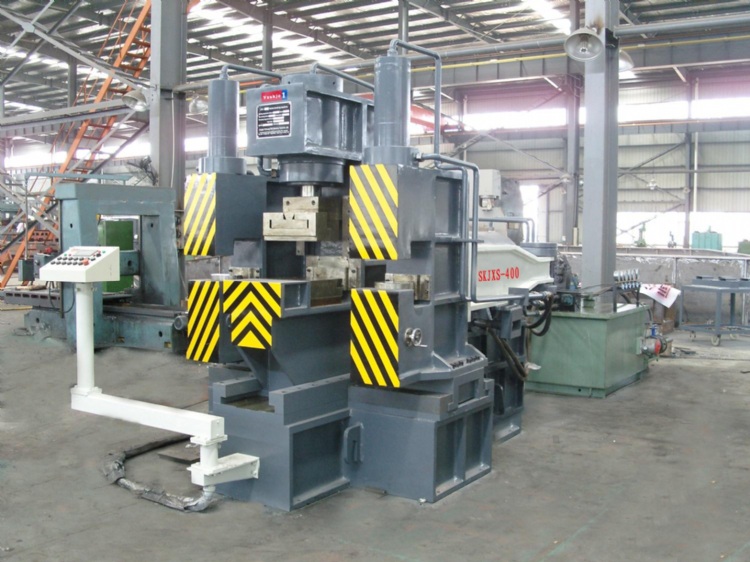

PLC Ship Frame Bending Machine
產品型號：JXS-400T
產品特色
JXS type PLC frame bending machine has 8 kinds in tonnage, such as 1000KN, 1600KN, 3000KN, 4000KN, 5000KN, 6000KN, 7000KN, 8000KN. It has been used in more then 30 shipyards, including shipyards in Korea and Vietnam
產品規格
| No | Item | Parameter | |||||||
| JXS-400T | |||||||||
| 1 | Type of function | External bending, internal bending, S bending, straightening, flattening | |||||||
| 2 | Horizontal bending cylinder | Force | KN | 4000 | |||||
| Travel | mm | ±280 | |||||||
| Speed of working | mm /s | 11 | |||||||
| Working pressure | Mpa | 22 | |||||||
| 3 | clamp cylinder( force is adjustable) | central clamping force | KN | 1000 | |||||
| side clamping force | KN | 600 | |||||||
| Pressure of hydraulic system | Mpa | 22 | |||||||
| 4 | Random adjustment distance of the bending support point | mm | 1200~1700 | ||||||
| 5 | Maximum stroke of the vertical pre-bending device for eliminating side-bending | mm | ±25 | ||||||
| 6 | Feeding mechanism | Maximum speed | mm /s | 120 | |||||
| Maximum distance for single feed | mm | 500 | |||||||
| Maximum pushing force of feeding cylinder | KN | 246 | |||||||
| Pressure of hydraulic system | Mpa | 16 | |||||||
| 7 |
Machining range of material | Yield strength of material | N/mm2 | 345 AH36/DH36/EH36 |
|||||
| Min. support point | Minimum bending radius in section | mm | 10×h, no less than 1800mm | ||||||
| Maximum scalene angle steel | mm | 450 | |||||||
| Maximum T-shape steel | mm | 450 | |||||||
| Maximum round steel | mm | Φ80 | |||||||
| 8 | Dimensions(L*W*H) | mm | 4500*2200*2500 | ||||||
| 9 | Net weight | T | 26 | ||||||
| Customized specification is available | |||||||||
