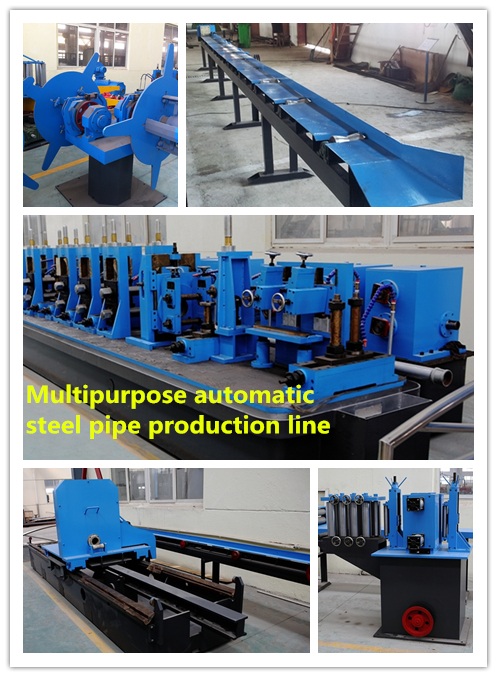

Multipurpose new automatic steel pipe production line
產品型號：16--219
產品分類：自動化設備/產業機械 / 鋼管製造機 / 鋼管製造機
產品特色
Multipurpose new automatic steel pipe production line is used to produce ERW pipe and cold bending profile steel with material of mild steel & low carbon steel of cold and hot roll carbon steel and galvanized roll carbon steel (CR, HR & GI) in the fields of metallurgy, construction, traffic, mechanism and vehicle. It can make steel strip of a certain specification into round pipe and square and rectangular pipe through cold bending forming and high frequency welding. The forming and sizing machine is designed well, so it can produce the perfect pipe.
產品規格
Multipurpose new automatic steel pipe production line is used to produce ERW pipe and cold bending profile steel with material of mild steel & low carbon steel of cold and hot roll carbon steel and galvanized roll carbon steel (CR, HR & GI) in the fields of metallurgy, construction, traffic, mechanism and vehicle. It can make steel strip of a certain specification into round pipe and square and rectangular pipe through cold bending forming and high frequency welding. The forming and sizing machine is designed well, so it can produce the perfect pipe.
|
Configuration |
|
|
1 |
Double-head decoiler |
|
2 |
Shear and butt welder |
|
3 |
Horizontal type strip accumulator |
|
4 |
Forming unit |
|
5 |
High-frequency welder |
|
6 |
Outer burr removing |
|
7 |
Water cooling system |
|
8 |
Sizing unit |
|
9 |
Tukey head ( straightener ) |
|
10 |
Computer controlled flying saw |
|
11 |
Run-out table |
Main technical parameters are as follows:
1) Diameter of Welded pipe: Φ32mm~Φ89mm
2) Wall Thickness of Welded pipe: 1.2~3.75mm
3) Speed of Tube Welding: 0~80m/min
4) Driving Motor Power: 132KW two sets
5) High Frequency Power: 300KW
|
Main technical parameters |
|
|
Diameter of Welded pipe |
Φ32mm~Φ89mm |
|
Wall Thickness of Welded pipe |
1.2~3.75mm |
|
Speed of Tube Welding |
0~80m/min |
|
Driving Motor Power |
132KW two sets |
|
High Frequency Power |
300KW |
