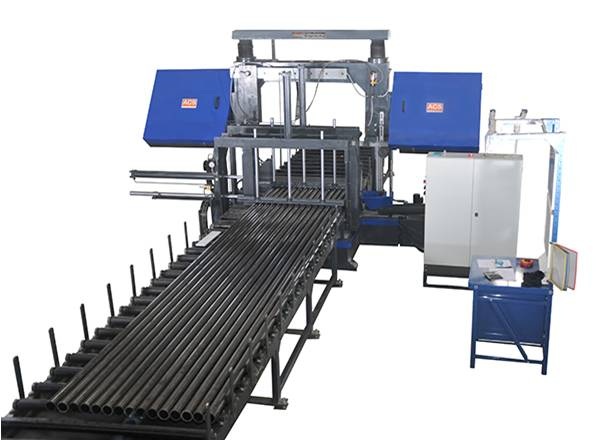

double column automatic band saw machine
產品型號：ACS 220 DFA
產品分類：工具機產業機械 / 鋸床 / 油壓帶鋸床, 龍門式
產品特色
1. Double column construction (LMG) for smooth and precise movement of cutting head.
2. Massive solid stress relieved torsion free fabricated frame provides durability stiffness and absorbs vibration. Guaranteeing vibration free operation.
3. Large diameter cast iron wheel with flame hardened periphery for reducing abrasive wear of wheel and enhancing blade life.
4. Infinitely variable feed control valve for setting the desired feed rate of
Cutting head.
5. Rigid box type base design which provides strength and reduces vibration with integrated hydraulic tank and coolant reservoir.
6. Heavy duty Helical Geared Motor (Sew Eurodrive) with high efficiency design delivers more torque to the band wheel.
7. Specially designed spindle housing for large diameter output shaft with heavy duty taper roller bearing to take high axial load
8. State-of-the-art hydraulic tensioning of blade.
9. Double acting hydraulic cylinder for main vice and shuttle vice.
10. Rapid approach of saw frame to save idle time.
11. Friction type cleaning circular wire brush.
12. Efficient guiding of blade with heavy duty adjustable dovetail type movable blade guide with tungsten carbide inserts and pre-straightening guide rollers.
13. Hydraulic power pack with 80 lit oil capacity with high class hydraulic valves from Vickers, Yuken, and Rexroth.
14. Ergonomically designed electrical control panel with high class switch gears from Siemens, L&T, and Schnieder.
15. Automatic machine switch off in case of blade breakage.
16. Automatic cycle sequencing through PLC (Messung) with HMI and inbuilt work piece counter.
17. Auto indexing shuttle with stroke length of 450 mm and synchronized with auto cycle.
18. Length setting through digital Siko meter with 0.1 mm least count.
19. Operation instruction manual.
20. One year warranty.
產品規格
1. Cutting capacity mm O {Round} 220. Dia. 2. Cutting capacity mm ■ {Square} 220 X 220 3. Blade size mm 3760 x 34 x 1.1 4. Overall dimension mm L2100 X W2100 X H1450 5. Cutting speed m/min 20 to 100 6. Machine weight Kg 1450 ELECTRICAL 1. Saw motor HP 3 2. Hydraulic motor HP 1 3. Coolant motor HP 0.15 4. Supply 415VOLTS / 50Hz / 3PHASE A.C.SUPPLY
