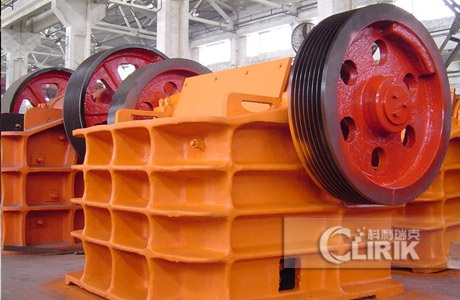

Clirik Hot Product PE Jaw Crusher for Sale with Excellent Performance
產品型號：PE&PEX
產品分類：自動化設備/產業機械 / 其他產業機械 / 磨碎機械
產品特色
1. High capacity and low power consumption;
2. Uniform particle size with high crushing and crushing ratio;
3. Simple structure; Easy operation
4. Low investment.
5. Perfect services.
產品規格
Product Description
China cheap jaw crusher is in Shanghai clirik machinery co., LTD. Jaw crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, suitable to crush hard and soft ores with compressive strength less than 320 MPa. This machine can break material s into medium size and fine size.
Working principle of jaw crusher:
Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.
The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.
When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.
1. high crushing ratio, uniform particle size,
Advantage and feature of jaw crusher:
1. high crushing ratio, uniform particle size,
2. simple structure, reliable performance,
3. easy maintenance and economic operation.
1. What advantages does your jaw crusher have?
—The main advantage of our jaw crusher over other kinds of mills is that you can grind a friable or crystalline material to 5 - 47 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.
2. Can you guarantee the quality of your jaw crusher ?
---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3.How many years have you been manufacturing the machine?
---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality
4. How do you adjust particle size in your jaw crusher ?
—Particle size is adjusted primarily by a change in feed rate. When the rate is reduced, finer particles result because there is more energy available per particle to accelerate the particles and the entire fluid mass. Collisions become more violent and pressure gradients become larger.
Main Specification of jaw crusher:
Main Specification of jaw crusher:
| Type |
Feed Opening Szie (mm) |
Feeding Size (mm) | Output Open Range (mm) |
Capacity (t/h) | Powder (kw) |
Dimension L*W*H (mm) |
| PE150×250 | 150X250 | 125 | 10--40 | 1--5 | 5.5--7.5 | 922×745×933 |
| PE200×350 | 200X350 | 125 | 15--40 | 5--16 | 7.5--11 | 1056*1142*1220 |
| PE250×400 | 250x400 | 210 | 20-60 | 5--20 | 15--18.5 | 1430*1310*1340 |
| PE400×600 | 400X600 | 350 | 40--100 | 15--60 | 30-37 | 1700*1732*1653 |
| PE500×750 | 500X750 | 425 | 50-100 | 40-100 | 45-55 | 2035*1921*2000 |
| PE600×900 | 600X900 | 480 | 65-160 | 60-140 | 55-75 | 2290*2206*2370 |
| PEX250×400 | 250x400 | 210 | <12 | 5--10 | 15--18.5 | 1430*1310*1340 |
| PEX250×1000 | 250x1000 | 210 | 25-60 | 16-50 | 30-37 | 1530*1992*1380 |
| PEX250X1200 | 250X1200 | 210 | 25-60 | 20-60 | 37-45 | 2192*1605*1415 |
| PEX300x1300 | 300x1300 | 250 | 25-105 | 20-90 | 75 | 2720*1950*1600 |
