Portable plasma cutting machine
產品型號:SCP-1525
產品特色
Auto THC
CNC control
Place of Origin Beijing, China (Mainland)
Brand Name smart cut
Model Number SCP-1525
Input Voltage 110-220V
Dimensions 1500 X 3000
Usage Metal Cutting
Cutting method plasma
Cutting area 1500 x 2500 mm
Cutting thickness Flame cutting 6-150 mm/Plasma cutting 0.1-20mm
Max. cutting speed 0~8m/min
Process Type Metal
Usage Metal cutting machine
Machine Type Portable
Controller Brand Start
Control Mode CNC
Weight 140kg
產品規格
CNC Plasma Cutting Machine for metal

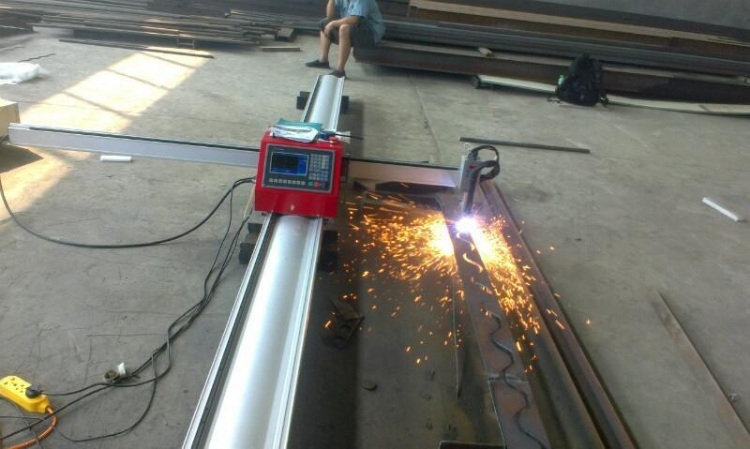

Portable CNC plasma cutting machine is used for cutting metal plate, cut machine, such as steel plate. Faceful man-machine conversation. The beam can be easily disassembled, easy for packing and shipment. Sealing perfect, dust-proof., light, smart and portable.
Discription:
1 The overall processing machine basegood stability, not deformed
2 Using beeline and double-slide lead rails, high accuracy
3 A detachable structural design for arm, convenient transportation and installation;
4 Beautiful structure, coordination, light weight;
5 Machine base is made in steel.
6 Using CNC of Beijng Start Microstep Control Technology Co., Ltd: SH-2000UHA.
The CNC control system has the following character:
1) High reliability, such as anti-plasma jamming, and lightning strike, Surge;
2) 32M users program storage capacity can update to 64M
3) In both English and Chinese interface conversion;
4) During plasma processing, auto-complete the speed control of the corner;
5) Rich software features and practical flame / plasma cutting process;
6) In particular small line section procedure processing can be widely used in metal materials and advertisement, Iron;
7) Dynamic graphics, zoom in 1-8X the graphics, fixed point of automatic tracking;
8) Using USB Flash Drive reading procedure and timely upgrade software;
9) Built-in the rich graphics, makes programming easy to learn.
Parameter
Input voltage: 110-220V
Gas depression: Max0.1Mpa
Power frequency: 50Hz
Oxygen deprission: Max1.5Mpa
Rated power: 160W
Cutting type: Plasma
Display: 7"
Total weight: 140Kg
Automatic height controller SC-HC30
