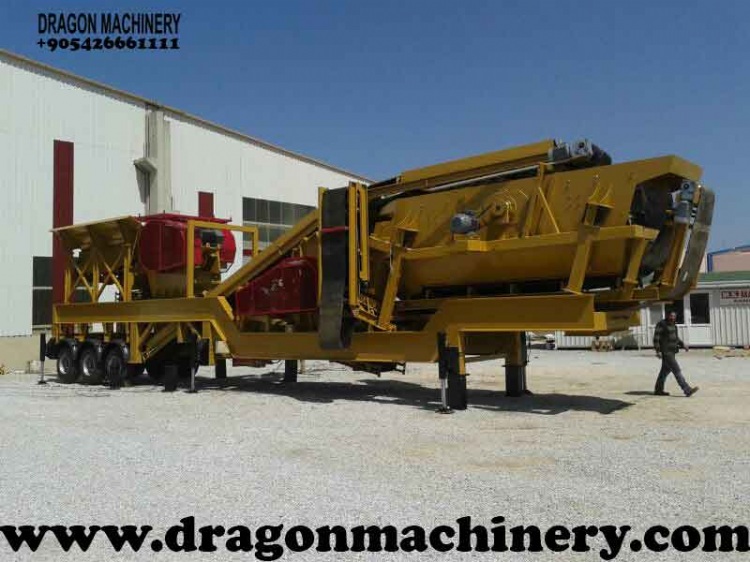

Mobile Crusher Plant Turbo 900
產品型號:Mobile Crusher Plant Turbo 900
產品分類:自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
"Mobile Crusher Plant ( Hard Material Crusher ) Capacity 120 – 200 T/H
TURBO 900 was designed for producers and contractors that require a complete system in a portable configuration.
The TURBO 900 is equipped with a vibrating grizzly feeder with loading hopper, primary jaw crusher, secondary crusher (Impact Crusher or Cone Crusher), 3-deck sizing screen, all on-plant transfer conveyors and stacking conveyors to stockpile the final products.
This system will provide producers with a complete 2-stage crushing and screening system that can produce up to 3-sized products in one single package.
The plant can be equipped with multiple axle configurations and other features to enhance its portability.
New System Mobile Crusher Plant Turbo 900
1. Feeder and Hopper
Vibrator System
Feeder Grizzly System
Feeder Size : 1000x 3800 mm 12m3 (Optional 11 m3 ) 2nos. Vibrator adjusttable throw amplitude Oli
2. Jaw Crusher 900x650mm
Size: 900x650 mm Primary type
Motor power: 75-90 kW
Jaw Crusher Is Setting Mechanism can be adjusted easily.
3. Main Conveyor System
Size : 1000 mm
Type tracked conveyor.
4. High Capacity Vibrating Screen
Size : 1600×5000 mm 3 Deck
Motor Power 18.5 KW
5. Hidrocone 900 Cone Crusher
Motor : 110 Kw - 132 Kw
6. Stock Conveyor 3 Unit
Folding type
7. Feedback Conveyor Belt 2 Pcs
600 mm - 750 mm
8. Mobile Chassis ( Special Type )
3-axle Chassis
9. Control Panel ( Chassis Coupled )
10.Natural soil Conveyor belt (Optional)
11. Optional Generator
* Frequency and Speed Control system Turbo Crusher Enabling Speed setting (Optional)
This system for fuel savings of 50% ,Approx fuel consumption 26 - 30 Lt / h
4 Deck Screen : 4 Deck and 4th Stock Conveyor Belt (Optional )
Total Weight : 58.000 Kg
Dragon Crushers Inc.'s line of Dragon 9-10-15-20,Turbo 600,900 portable plants are designed for a wide variety of applications. Though each plant is different, each is the same in fundamental ways: Portability, dependability, durability, competitive capital costs, low cost maintenance and designed to meet customer's needs.
Portability has been a major concern for customers along with quick setup time. We have accommodated our customers' concerns by making most of our plants portable in one single unit. Since our plants are portable in one piece they use minimal time in set-up and tear-down. To further reduce set-up and tear-down time, all plants come standard with telescoping screw jack legs or optional hydraulic lifting legs for fast set-up and to eliminate the time consuming task of cribbing. We have designed our plants to be able to be placed and running in minimal time providing our customers with reduced set-up costs and increased productivity.
We have proven the dependability and durability of our plants with years of service in the field. These plants have crushed everything there is to crush and run day-in and day-out and they're still going strong. We constantly look for ways to improve our designs, make our plants better and continue to out last the competition.
Our plants are designed with the idea that a plant should be easily maintained. We understand the time spent maintaining a plant is time that could be spent producing material. We strive to design our plants to minimize the time needed to do the necessary maintenance.
Dragon Crushers specializes in design and application - the right product and the right flow plan to accomplish your particular job. Many of our plants are designed around our customer's specifications but we always keep an eye on flexibility. Since our plants are designed with our customer's needs in mind we are able to build a more efficient plant and/or eliminate the need for additional equipment to accomplish the same task.
"
