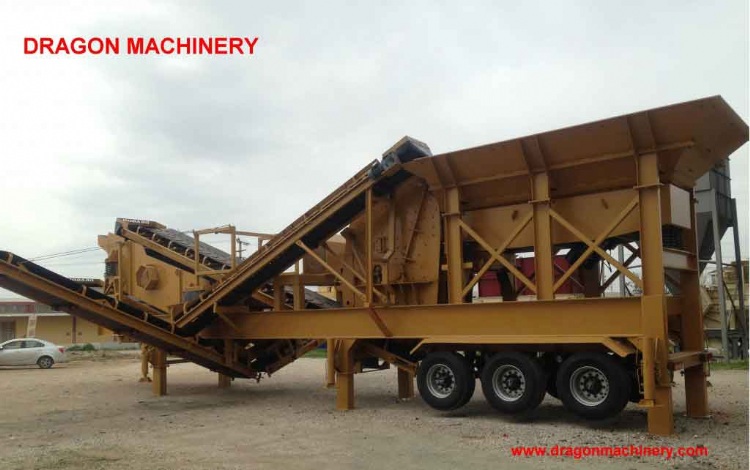

Mobile Closed Circuit Crushing Plant - Dragon 10-New-Technology
產品型號:New Generation Mobile crushing plant Dragon Crushe
產品分類:自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
" Closed Circuit Portable Impact Crushing Plant DRAGON 10Mobile Chassis
Dragon 10 wheel suspension
Total Twelve(12) Blocking Legs
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides of cone with hand rails and kick plate
Walkways and ladders both sides of screen & front cross over
Access ladder to chassis
Hydraulic raise and lower screen subframe
Hydraulic Levelling System
Six(6) hydraulic levelling jack system
Feeder Module
Hopper and Feeder
Approximately 10-15 m3 capacity
Vibrator System
Feeder Grizzly System
Feeder Size : 1000x3500mm 2nos. Vibrator adjusttable throw amplitude Oli
Turbo Crusher
Rotor Size : Turbo Impact Crusher 1000x1300mm
Dragon Turbo Impact Crusher New System , New Generation
Strong Body, Strong rotor, strong setting blocks
160 - 185 kW motor 1500 RPM, sheaves, v-belts
Hydraulic opening system
Easy adjustment mechanism
2-Sided, Flexible pallets
Improved latest technology Crushing system
Main Feed Belt
1000 mm Conveyor belt
Motor : 7,5 kW
Dragon Screen High Capacity Type
Screen Size : 1500x 4500 mm 3 Deck High Capacity Screen
Motor : 15 kw
Stock Conveyors 3 Unit
2 Unit
600 mm Conveyor belt
Motor : 4 kW
1 Unit
1000 mm Conveyor belt
Motor : 5,5 kW
Feedback Conveyor 1.
600 Conveyor belt
Motor : 2.2 Kw
Feedback Conveyor 2.
600 Conveyor belt
Motor : 5,5 kW
Hydraulic block adjustment, Easy To Setup, Primary Block,Secondary Block
Mobile Chassis : 3 axle chassis
Control Board : Siemens
Hydraulic System
* Frequency and Speed Control system Turbo Crusher Enabling Speed setting (Optional)
This system for fuel savings of 50% ,Approx fuel consumption 15 - 18 Lt / h
4 Deck Screen : 4 Deck and 4th Stock Conveyor Belt (Optional )
Generator (optional )
Cummins - Cat - Perkins - Doosan
Engine Power 330 kva Generator
Max. feed capacity approx. 150 – 250 t/h
Feeding size 900 x 900 mm
Feeding height 4,500 mm
Transport dimensions (w x l x h) * 3,000 x 15,600 x 4,480 mm Machine weight 34,000 kg
New Technology Crushing and Screening plant Closed Circuit Crushing Plant
* New Product
* New technology * This is a revolution Crushing and Screening plant Closed Circuit Crushing Plant
Dragon 10
* New System Crushing and Screening plant latest Technology
* Easy, Practical, Quick Installation, simple transport, use it anywhere.
Dragon Crushers Inc.'s line of Dragon 9-10-15-20,Turbo 600,900 portable plants are designed for a wide variety of applications. Though each plant is different, each is the same in fundamental ways: Portability, dependability, durability, competitive capital costs, low cost maintenance and designed to meet customer's needs.
Portability has been a major concern for customers along with quick setup time. We have accommodated our customers' concerns by making most of our plants portable in one single unit. Since our plants are portable in one piece they use minimal time in set-up and tear-down. To further reduce set-up and tear-down time, all plants come standard with telescoping screw jack legs or optional hydraulic lifting legs for fast set-up and to eliminate the time consuming task of cribbing. We have designed our plants to be able to be placed and running in minimal time providing our customers with reduced set-up costs and increased productivity.
We have proven the dependability and durability of our plants with years of service in the field. These plants have crushed everything there is to crush and run day-in and day-out and they're still going strong. We constantly look for ways to improve our designs, make our plants better and continue to out last the competition.
Our plants are designed with the idea that a plant should be easily maintained. We understand the time spent maintaining a plant is time that could be spent producing material. We strive to design our plants to minimize the time needed to do the necessary maintenance.
Dragon Crushers specializes in design and application - the right product and the right flow plan to accomplish your particular job. Many of our plants are designed around our customer's specifications but we always keep an eye on flexibility. Since our plants are designed with our customer's needs in mind we are able to build a more efficient plant and/or eliminate the need for additional equipment to accomplish the same task.
"
