Mobile Chassis
Dragon 9 wheel suspension Total teen(10) blocking legs four(4) of them hydraulic ally operated Airbrakes, running lights, and mud flaps Fixed walkway on both sides of cone with hand rails and kick plate Walkways and ladders both sides of screen & front cross over Access ladder to chassis Hydraulic raise and lower screen subframe Hydraulic Levelling System 2 axle chassis Four (4) hydraulic levelling jack system

Hopper and Feeder
Approximately 8 – 10 m3 capacity Vibrator System  Feeder Grizzly System Feeder  Size : 800x3000mm

Turbo Impact Crusher
Rotor Size : 1000 x 800mm   New Generation , New System Crusher Strong Body, Strong rotor, strong setting blocks 110 – 160 kw  motor 1500 RPM, sheaves, v-belts Hydraulic opening system Easy adjustment mechanism 2-Sided, Flexible pallets Improved latest technology Crushing system Main Feed Belt

800 mm Main Conveyor belt
Main Conveyor 7,5 kw Electrical Motor New System Gearbox reduction
Dragon Screen   3 Deck High Capacity
Screen Size :1300x 4000 mm 3 Deck High Capacity Screen
Motor : 11 Kw Electrical Motor
Stock Conveyors 3 Unit
2 Unit 600 mm Conveyor belt Motor : 4 kw Electrical Motor
1 Unit 800 mm Main Stock Conveyor belt
Motor : 5,5 Kw Electrical Motor
Feedback Conveyor 1. 600 mm
Motor: 2.2 kw
Feedback Conveyor belt 2. 600 mm Motor : 4 kw Electrical Motor
Hydraulic block adjustment, Easy To Setup, Primary Block,Secondary Block
Mobile Chassis  :2 axle chassis
Control Board  :Siemens
Hydraulic System
* Frequency and Speed Control system Turbo Crusher Enabling Speed setting (Optional)
This system for fuel savings of 50%    ,Approx fuel consumption 10 - 14  Lt / h
4 Deck Screen  :  4 Deck and 4th Stock Conveyor Belt  (Optional )
Generator  ( Optional )
Cummins ,Perkins , Cat , Doosan
Engine Power 275 Kva Generator
Feeding size max. 800 x 800 mm Feeding height 3,600 mm
Feed capacity  100 – 160 t/h
Transport dimensions (w x l x h) * 3,000 x 13,200 x 3,680 mm Machine weight 38,000 kg
New Technology Crushing and Screening plant Closed Circuit Crushing Plant
* New Product
* New technology * This is a revolution Crushing and Screening plant Closed Circuit Crushing Plant

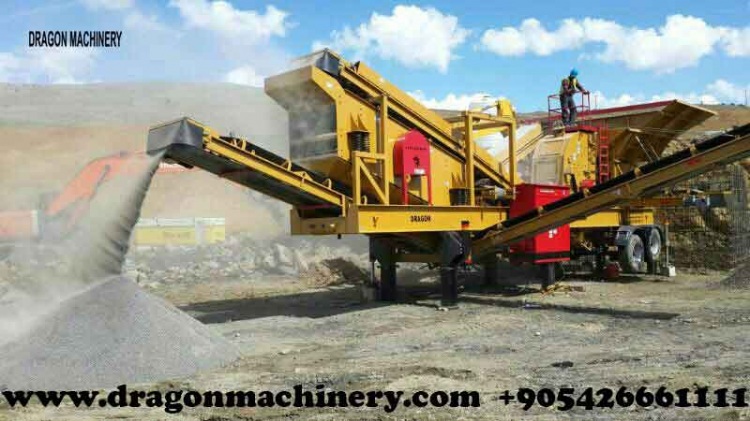

Dragon 9
* New System Crushing and Screening plant latest Technology
* Easy, Practical, Quick Installation, simple transport, use it anywhere.
DRAGON CRUSHERS
Crusher Plants Company
Dragon Crushers Inc.'s line of Dragon 9-10-15-20,Turbo 600,900 portable plants are designed for a wide variety of applications. Though each plant is different, each is the same in fundamental ways: Portability, dependability, durability, competitive capital costs, low cost maintenance and designed to meet customer's needs.

Portability has been a major concern for customers along with quick setup time. We have accommodated our customers' concerns by making most of our plants portable in one single unit. Since our plants are portable in one piece they use minimal time in set-up and tear-down. To further reduce set-up and tear-down time, all plants come standard with telescoping screw jack legs or optional hydraulic lifting legs for fast set-up and to eliminate the time consuming task of cribbing. We have designed our plants to be able to be placed and running in minimal time providing our customers with reduced set-up costs and increased productivity.
We have proven the dependability and durability of our plants with years of service in the field. These plants have crushed everything there is to crush and run day-in and day-out and they're still going strong. We constantly look for ways to improve our designs, make our plants better and continue to out last the competition.
Our plants are designed with the idea that a plant should be easily maintained. We understand the time spent maintaining a plant is time that could be spent producing material. We strive to design our plants to minimize the time needed to do the necessary maintenance.

Dragon Crushers specializes in design and application - the right product and the right flow plan to accomplish your particular job. Many of our plants are designed around our customer's specifications but we always keep an eye on flexibility. Since our plants are designed with our customer's needs in mind we are able to build a more efficient plant and/or eliminate the need for additional equipment to accomplish the same task.
** All our products are CE certified by the European Union.
"
">
