Mobile Chassis
Dragon 7 wheel suspension
Total teen(10) blocking legs four(4) of them hydraulic ally operated
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides with hand rails
Walkways and ladders both sides of screen & front crossover
Access ladder to chassis
Hydraulic Levelling System
2 axle chassis
Four (4) hydraulic levelling jack system
Hopper and Feeder
Approximately 8 – 10 m3 capacity
Vibrator System
Feeder Grizzly System
Feeder Size : 650 x 2500 mm
Turbo Impact Crusher
Rotor Size : 1000 x 650mm New Generation , New System Crusher
Strong Body, Strong rotor, strong setting blocks
90 – 110 kW motor 1500 RPM, sheaves, v-belts
Hydraulic opening system
Easy adjustment mechanism
2 Side usable pallets
Improved latest technology Crushing system
Main Conveyor Belt
800 mm Main Conveyor belt
Main Conveyor 5,5 kW
New system gearbox reduction
Dragon Screen 3 Deck High Capacity
Screen Size :1250x 3000 mm 3 Deck High Capacity
Motor : 11 kW
Stock Conveyors 3 Units
 2 units: 500 mm stock conveyor belt
Motor : 3 kW
1 unit: 800 mm stock conveyor belt
Motor : 4 kW
Feedback Conveyor
1:600 mm
Motor: 2.2 kW
Feedback Conveyor
2:500 mm
Motor : 3 kW
Hydraulic block adjustment, Easy To Setup, Primary Block, Siemens
Mobile Chassis :
2 axle chassis
Control Board Schneider Electric
Remote Control For One-Man-Operation.
Hydraulic System
Frequency and speed control system (Optional)
Turbo crusher enabling speed setting
This system provides for fuel savings of 50%
Approx fuel consumption 8 - 12 Lt / h
4 Deck Screen : 4 Deck and 4th Stock Conveyor Belt (Optional )
Generator (Optional)
Cummins ,Perkins , Cat , Doosan
Engine power 200 kva generator
Feeding size max. 600 x 600 mm
Feeding height 3,600 mm
Feeding capacity 80 – 140 t/h
Transport dimensions (w x l x h) * 3,000 x 11,000 x 3,680 mm
Total weight 25.000 kg
New Technology Crushing and Screening plant Closed Circuit Crushing Plant
* New Product
* New technology

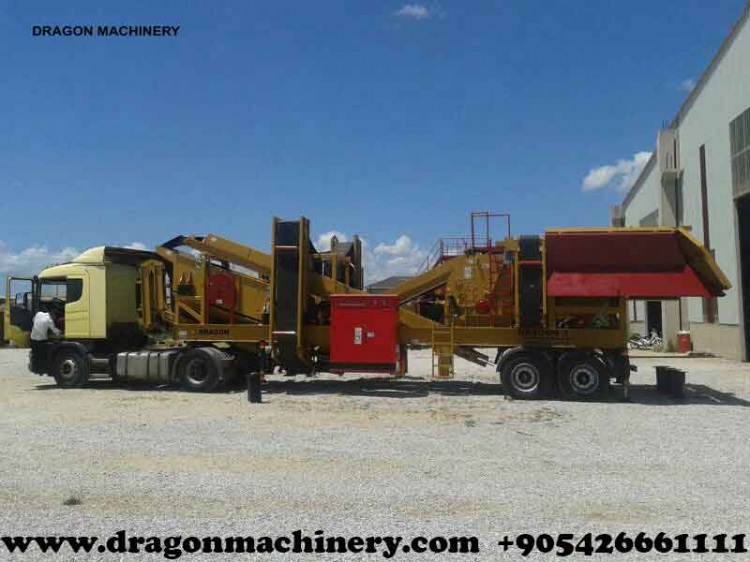

* This is a revolution Crushing and Screening plant Closed Circuit Crushing Plant Dragon 7
* New System Crushing and Screening plant latest Technology
* Easy, Practical, Quick Installation, simple transport, use it anywhere.
DRAGON CRUSHERS
Crusher Plants Company
Dragon Crushers Inc.'s line of Dragon 7- 9-10-15-20, Turbo 600,900 portable plants are designed for a wide variety of applications. Though each plant is different,
each is the same in fundamental ways: Portability, dependability, durability, competitive capital costs, low cost maintenance and designed to meet customer's needs.
Portability has been a major concern for customers along with quick setup time.
We have accommodated our customers' concerns by making most of our plants portable in one single unit.
Since our plants are portable in one piece they use minimal time in set-up and tear-down. To further reduce set-up and tear-down time,
all plants come standard with telescoping screw jack legs or optional hydraulic lifting legs for fast set-up and to eliminate the time consuming task of cribbing.
We have designed our plants to be able to be placed and running in minimal time providing our customers with reduced set-up costs and increased productivity.
We have proven the dependability and durability of our plants with years of service in the field.
These plants have crushed everything there is to crush and run day-in and day-out and they're still going strong. We constantly look for ways to improve our designs,
make our plants better and continue to out last the competition. Our plants are designed with the idea that a plant should be easily maintained.
We understand the time spent maintaining a plant is time that could be spent producing material.
We strive to design our plants to minimize the time needed to do the necessary maintenance. Dragon Crushers specializes in design and application
- the right product and the right flow plan to accomplish your particular job. Many of our plants are designed around our customer's
specifications but we always keep an eye on flexibility. Since our plants are designed with our customer's needs in mind we are able to builda
more efficient plant and/or eliminate the need for additional equipment to accomplish the same task.
"
">
