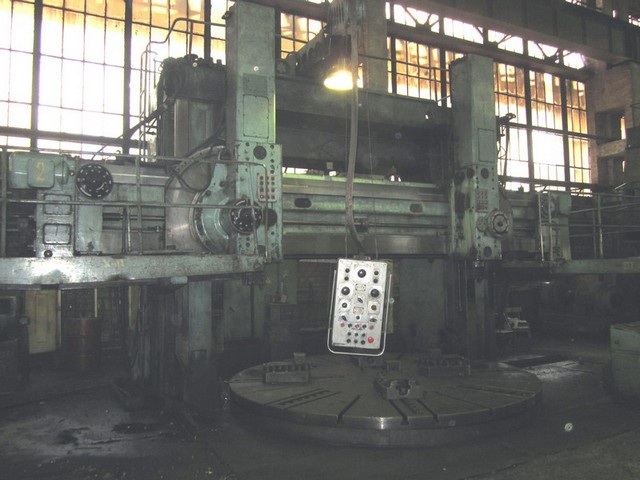

Vertical turret lathe model 1540 KOLOMNA
產品型號：1540 KOLOMNA
產品特色
Diameter of workpiece: 4000 mm
Height of workpiece: 2000 mm
Diameter of a faceplate: 4000 mm
Max. slider stroke : 1250 mm
Right slider type: turning
Left slide rtype: combinated
Corner of supports turn: -15 +40
Weight of the workpiece on a faceplate: 50000 kg
Effort of cutting to a right support: 63 kH
Effort of cutting to the left support: 50 kH
The max total effort of cutting by two supports: 100 kH
Table speeds: 0.52 - 48.7 rpm
Feeding: 0,059 - 470 mm/min
Rapid feeding: 2715 mm/min
Capacity of the main drive: 63 kW
Height above a level of a floor: 6000 mm
Dimensions (lenght-width-height): 5900 x 10100 x 7200 mm
Machine weight: 100 ton
產品規格
Diameter of workpiece: 4000 mm
Height of workpiece: 2000 mm
Diameter of a faceplate: 4000 mm
Max. slider stroke : 1250 mm
Right slider type: turning
Left slide rtype: combinated
Corner of supports turn: -15 +40
Weight of the workpiece on a faceplate: 50000 kg
Effort of cutting to a right support: 63 kH
Effort of cutting to the left support: 50 kH
The max total effort of cutting by two supports: 100 kH
Table speeds: 0.52 - 48.7 rpm
Feeding: 0,059 - 470 mm/min
Rapid feeding: 2715 mm/min
Capacity of the main drive: 63 kW
Height above a level of a floor: 6000 mm
Dimensions (lenght-width-height): 5900 x 10100 x 7200 mm
Machine weight: 100 ton
