絞線機

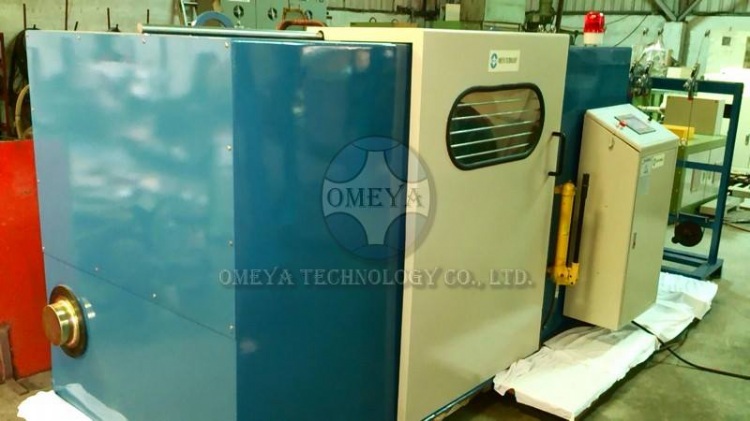

產品型號:OM-FTDB Fine Wire Double Twist Bunching Machine
產品分類:自動化設備/產業機械 / 自動化設備 / 自動化控制系統
立即線上詢問
產品特色
For the stranding purpose for multiple wires, OMEYA offers the Fine Wire Double Twist Bunching Machine for the process without back twist. By utilizing different pay-off stands, the machine can be utilized for laying-up applications. We design the control system with PLC + HMI that makes the whole system work with the line speed in synchronization.
產品規格
|
FDTB200 |
FDTB300 |
FDTB400 |
FDTB500 |
FDTB630 |
FDTB800 |
Strand Cross Section (mm^2) |
0.049~0.500 |
0.049~0.500 |
0.0137~1.000 |
0.035~2.000 |
0.220~8.000 |
0.500~16.000 |
Lay Length (mm) |
1.00~4.00 |
2.50~10.00 |
3.50~20.00 |
5.00~25.00 |
7.00~98.00 |
7.00~100.00 |
Max. Line Speed (M/min) |
75 |
75 |
150 |
150 |
300 |
300 |
Max. Rotation Speed (Twist/min) |
8000 |
8000 |
7000 |
7000 |
6000 |
5000 |
Max. Spool Size (mm) |
200(D) x 150(W) |
300(D) x 225(W) |
400(D) x 300(W) |
500(D) x 375(W) |
630(D) x 475(W) |
800(D) x 600(W) |
Dimension (mm) |
1610(L) x 1150(W) x 1000(H) |
1800(L) x 1200(W) x 1100(H) |
2150(L) x 1350(W) x 1250(H) |
2130(L) x 1480(W) x 1400(H) |
3000(L) x 1600(W) x 1900(H) |
3430(L) x 1800(W) x 1980(H) |
Weight (kgs) |
1050 |
1100 |
1720 |
2230 |
4000 |
5000 |
|
