多頭伸線機
產品型號:OM-8WD Multi-wire Drawing Machine
產品分類:自動化設備/產業機械 / 自動化設備 / 自動化控制系統
產品特色

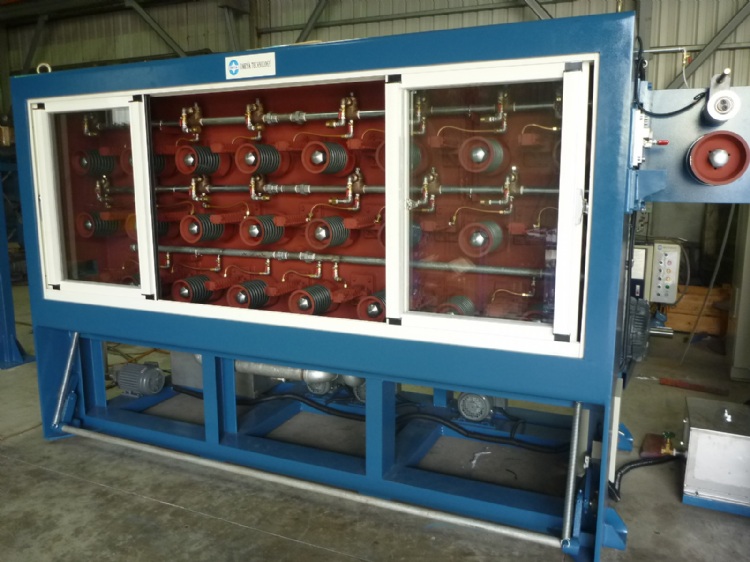

For the purpose of drawing the Multiple Wires a the same time, OMEYA Technology offers the Multi-wire Drawing Machine. There are 3 rows of Drawing Cones horizontally arranged in the drawing cabinet. There is a capstan at the output of drawing cabinet and it also works as a meter counter wheel. All of the Drawing Cones are treated the ceramic coating on the surface for the purpose of wear resistance. We design the control system with PLC + HMI that makes the whole system (Multiple Wires Drawing Machine + Annealing Machine + Take-up) work with the line speed in synchronization.
產品規格
OM-8WD | |
Die (no.) | 29 |
Input Wire (mm) | 0.38mm-0.77mm |
Output Wire (mm) | 0.05mm-0.10mm |
Max. Speed (M/min) | 1800M/min |
Driven Motor Power (KW) | 11KW |
Annealing Capacity (KVA) | 100KVA |
