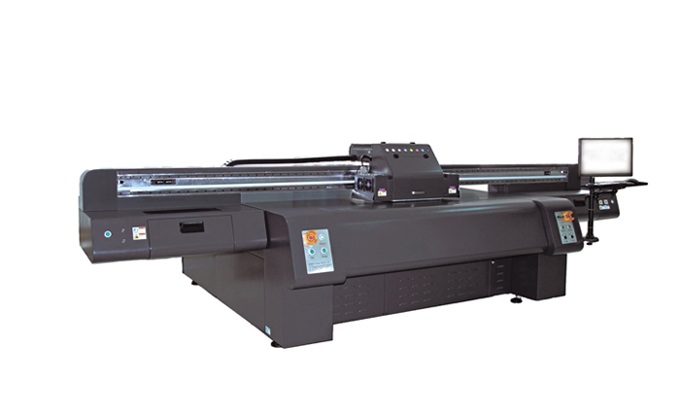

UV 板卷一體機



產品型號：LSUVHR2510

產品分類：包裝印刷暨食品及製藥機械 / 其他 / 其他



立即線上詢問





產品特色



Type of Printheads: KM512 14PL/KM1024 14PL/Ricoh GEN4/Ricoh Gen5
Nozzle controls: Printhead Nozzle temperature & voltage are software adjustable
Quantity of Printheads: 8-16 heads
Printing Size: 2.5m
Cloth Feeding System: Automatic Rotary Motor can be driven to achieve optimal tension distributing
Cloth Collecting System: Automatic Rotating Φ35cm
Media Treatment: Roll-Roll / Sheet-Sheet
Ink Type: UV curing inks; 4 color (CMYK) or 6 color (CMYKLcLm); White & Varnish Optional
Ink Reservoir: Refillable on the fly white printing/1500ml
Drying system: UV Lamp
Resolution: 360DPI*360DPI ~ 1440DPI*1440DPI
Printing Speed:
Draft Mode: up than 60 square meter/hour (8heads)
Standard Mode: up than 38 square meter/hour (8heads)
High resolution Mode: up than 26 square meter /hour (8heads)
Media Thickness: 1-50mm
Outdoor Life: 2 years(use Lanscend Inks)
Rip software: Photoprint/ONYX/Caldera
Color Management: ICC based color, Curves adjustment, Density adjustment
Media Type: Corrugated Carboard, Foam Board, PVC, Ceramic Tile, Glass, Plexiglass, Wood, Metal, Paper, Advertising Banners, Wallpaper, Leather, Mesh Fabric, Self-adhensive Vinyl, etc.
Warranty: 1 Year
