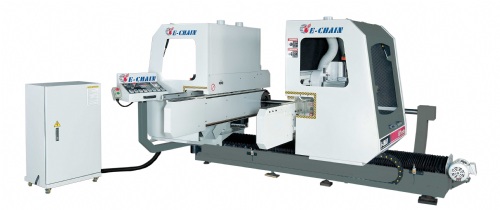

雙端作榫機
產品型號：ECT-A TYPE 系列
產品特色
雙端作榫機是製造高品質家具的最佳利器。無論是實木及板式家具，除可雙邊裁切定寸外，亦可做輪廓成型，曲線砂光，導角及公母榫製作。其自動化程度，更可展現高效率的實務功能。
產品規格
1.Model: ECT-46S (A) M AX. WORKING WIDTH : 1250 MM
2.Model: ECT-66S (A) MAX. WORKING WIDTH : 1850 MM
3.Model: ECT-86S (A) MAX. WORKING WIDTH : 2450 MM
MIN. WORKING WIDTH: 210 MM (100MM WOULD BE OPTION)
MAX. WORKING THICKNESS : 50 MM
*SCORING SAW UNIT : 2 HP x 2 PCS. AT 3450 RPM (60HZ) /ø 120-205 x 25.4 MM
*MAIN SAW UNIT : 5 HP x 2 PCS. AT 3450 RPM (60HZ) / ø 255 x 25.4 MM
*MOULDING UNIT: 5 HP x 2 PCS. AT 3000 / 8000 RPM (HIGH FREQUENCY MOTOR) ø 180-210 x 40MM
FEED MOTOR: 2 HP AT 6-20M/MIN (VARIABLE) with INVERTER 3HP
MOTOR FOR WIDTH ADJUSTMENT : 1HP
TOTAL HORSE POWER : 27 HP
