Rail Span:

4100mm

Effective cutting width:

3100mm

Rail Length:

15000mm

Effective cutting length:

12500mm

Cutting speed:

100 – 800 mm/min.

Marking speed:

12000 mm/min.

Rapid speed:

18000 mm/min.

Overall accuracy:

Reproducibility

≦ 0.1 mm

X,Y square-ness

≦ 0.5mm /3M* 6 M

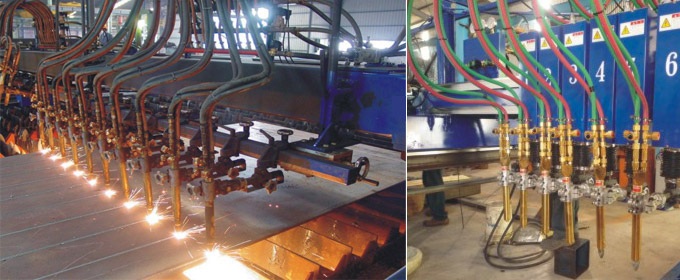

Cutting capacity:

1 torch 300mm, 2 torches: 150mm

Gas:

Oxygen, Acetylene

Longitudinal drive:

Dual AC servo motor / rack / rail

Transverse drive:

AC servo motor / rack / steel band
