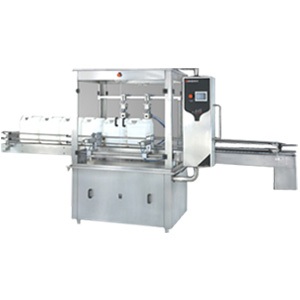

Piston Type Big Barrel Motor Oil Filling Machine with 2 Nozzles

---fj2014dt222

With the development of society, the demands of Modern people for the quality of the goods get higher and higher on the market and are expanding constantly. So we need the advance and new development.
Did you get your suitable filling machine, packaging machine or production line ? you can contact us.We are a professional Filling Machine manufacturer and supplier in China. Here you can find high-quality products in a competitive price. Also we supply OEM service of products for you.

Technical Parameters of Piston Type Big Barrel Motor Oil Filling Machine with 2 Nozzles:
Filling speed: 1200-1800 bottle/min
Filling accuracy: Within 0.5%
Air pressure: 8 kg/cm2
Filling range: 5-60 ml,50-500ml,500-5000ml,etc.
air consumption: 23 L/min,44 L/min,160 L/min,450 L/min,etc.
Weight: 11 kg,22kg,36kg,60kg,etc
Overall size: 92×28×40 cm,102×30×40 cm,etc.
The parameters of piston type big barrel motor oil filling machine with 2 nozzles is by the different model.

Description of Piston Type Big Barrel Motor Oil Filling Machine with 2 Nozzles:
This piston type big barrel motor oil filling machine with 2 nozzles is applied to fill liquid and semiliquid ( viscous liquid, ointment) products into various containers.
This piston type big barrel motor oil filling machine with 2 nozzles is equipped two filling nozzles, so the filling speed of piston type filling machine with 2 nozzles/ filling machine is higher than single head liquid filling machine.
This pure pneumatic machine ofpiston type big barrel motor oil filling machine with 2 nozzles is especially suitable for the explosion-resistant and humid production environment.
This series of automatic oil filling machine is widely used in pharmacy, foodstuff, chemical, cosmetic industries and other special industries. This application of filling machine can improve your effience of packaging products.

Features of Piston Type Big Barrel Motor Oil Filling Machine with 2 Nozzles:
1. All the components that come in contact with product are made of 316L stainless steel which is sourced from Sweden and processed by CNC machines to ensure a surface roughness lower than 0.8,no pollution, easy cleaning, meet the GMP standard.
2. This piston type big barrel motor oil filling machine with 2 nozzles is controlled by compressed air, so it is suitable for using at explosion-Resistant and humid environment.
3. Because of the pneumatic controls and mechanical positioning, this automatic oil filling machine has high filling accuracy which is within 0.5%.
4. Two filling modes for you to choose- " Manual" and "Auto".
5. The filling volume and speed of piston type big barrel motor oil filling machine with 2 nozzles are adjusted using screws and the counter, which provides ease of adjustment and allows the operator to read the real-time filling volume on the counter.
6. The filling nozzles of piston type filling machine with 2 nozzles/ filling machine adopted anti-leakage, no pollution, save time and materials.
7. The proportion of equipment malfunction is extremely small. easy to clean, tool free.

Related product: Manual purified water filling machine, sachet liquid filling machine, mineral water filling machine, etc.
