Zirconium Silicate stone powder grinding mill equipment for sale



產品型號：HGM

產品分類：工具機產業機械 / 銑床 / 立式銑床



立即線上詢問





產品特色



Industrial use of Zirconium Silicate powder which processed by stone powder grinding mill equipment:
Zirconium silicate is a kind of high quality, cheap opacifying agent, is widely used in various construction ceramics, sanitary ceramics, ceramic, level of arts and crafts in the production of ceramics, ceramic glaze in the production process. Zirconium silicate in the ceramic production can be widely used, because the chemical stability is good, they have not been subject to the influence of ceramic firing atmosphere, and can improve the ceramic blank glaze combined with performance, improve the ceramic glaze hardness. Zirconium silicate in TV industry color picture tube, glass industry emulsifying glass, and enamel glaze production has been further application. The melting point of zirconium silicate high: 2500 degrees Celsius, so in refractory materials, glass kiln zircon ramming material, pouring materials, spray coating has also been widely used.

Features of Zirconium Silicate stone powder grinding mill equipment:
1. The Zirconium Silicate stone powder grinding mill equipment is high efficient (twice as much as jet mill, mixing grinder and ball mill)
2. The spare parts of Zirconium Silicate stone powder grinding mill equipment can serve much longer time (2-3 times longer than that of impact mill or turbo mill.
3. High safety and reliability of the Zirconium Silicate stone powder grinding mill equipment (no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws)
4. The Zirconium Silicate stone powder grinding mill equipment are characterized by high fineness (final size: 325-3000 mesh, D97<5 micron)
5. Environment-friendly
Zirconium Silicate processing, we provide Zirconium Silicate stone powder grinding mill equipment.

Introduce of Zirconium Silicate stone powder grinding mill equipment:
Zirconium Silicate stone powder grinding mill equipment is for super-fine grinding materials with hardness less than 6 in Moh‘s scale and humidity less than 6 percent such as kaolin, limestone, basalt, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds.
Zirconium Silicate stone powder grinding mill equipment, the granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H depending on the final size and the grinding materials.

Working principle of Zirconium Silicate stone powder grinding mill equipment:

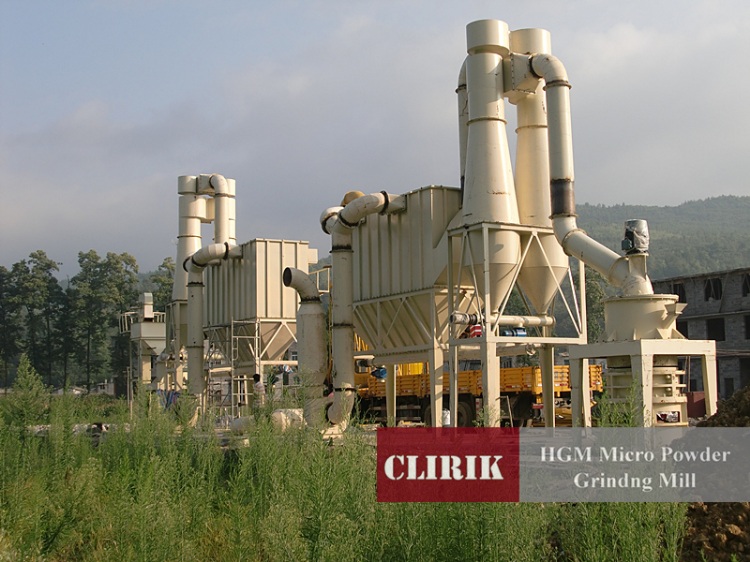

HGM series Zirconium Silicate stone powder grinding mill equipment mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.
When the Zirconium Silicate stone powder grinding mill equipment is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.
The high-pressure air blower constantly inhales air within the Zirconium Silicate stone powder grinding mill equipment and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
