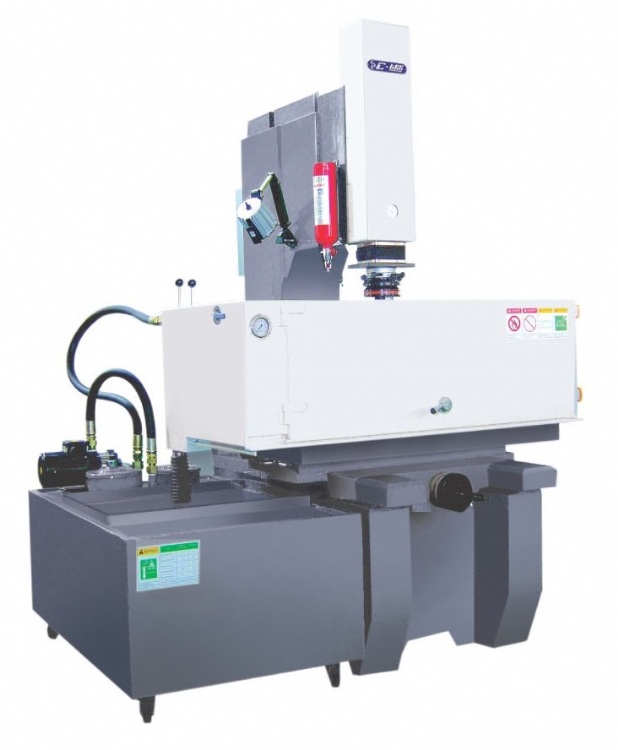

ZNC EDM
產品型號：ZNC320,435,540,650,750
產品分類：工具機產業機械 / 放電加工機 / 可程式控制放電加工機
產品特色
1. The highly rigid, fine-grained cast iron machine base, column, table, and Meehanite cast iron components provide stability and long service life.
2. Spindle employs DC servo to drive high precision ballscrew, which enhances high accuracy and high quality.
3. Slideways coated with Turcite B anti friction material, which ensures accurate and smooth traversing.
4. The slideways of X, Y axes are made up of V type structure; Squareness and parallelism don't change.
5. The table is treated with high frequency hardening treatment and polished by precision grinding machine to ensure accuracy and service life.
6. 60 pages of files storage capacity provided, which can save 60 different moulds or customer numbers.
7. Provided with mirror machining circuit to be able to erode real mirror effect.
8. 10 sections auto finishing function, including:
(1)Self-editing: Edit the machining condition according to personal experience.
(2)Auto Z set: Just input the Z axis depth & current values, other machining data will preset automatically.;
(3)Intelligent condition editing: Just choose electrode shape, electrode and workpiece material, cross-section measure of electrode, finish type as well as depth setting, computer will edit machining condition automatically. Above three kinds of editing methods can be completed by rough, medium, fine at a time.
9. Machining condition can be modified during sparking.
10. Discharging condition will adjust automatically when discharging is unsteady, computer itself will amend discharging efficiency and work time. Discharging condition will recover automatically after it's steady.
11. New fuzzy logic for arcing control and fuzzy servo voltage control: When the discharging is unsteady, machining parameter will be adjusted automatically. Moreover, electrode will raise back & up and pulse-off when arcing.
12. There are 3 kinds of coordinate systems: Absolute coordinate, incremental coordinate and reference coordinate. To facilitate the mould alignment.
13. All new designed generator and 15" CRT screen can correspond with CE safety standard, which is dustproof, waterproof and anti interference so as to prolong the service life of PC boards.
14. Generator employs high stability industrial PC-based controller.
15. It has the sparking up function.
