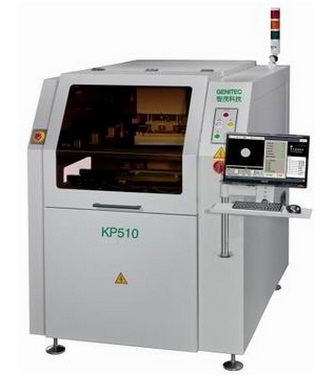

Screen Printer
產品型號：KP 510
產品分類：包裝印刷暨食品及製藥機械 / 印刷機械 / 平面自動網印機
產品特色
Auto stencil cleaning: Standard Specification, including Wet wiping, dry wiping and Exhaust the air.
Humanity software: Easy to learn and operate.
Blade working under stencil or depart from stencil; it will not move up and down; to ensure the steady of printing.
Blade tooling with floating blade and device of constant pressure, it will not influence the quality when changing the blade.
Inner part with 2 steps function of forward boards, could prevent the solder may touch the board.
Z axis print platform working fast and steady, could increase the printing flatness of pc board.
The vaccum device is option, available for under 0.6mm board.
Align system with the multi binary control, and include the X,Y,θ high precision movement, ensure the printing fixed accuracy.
產品規格
【Application】
-
Apply for SMT/Semiconductor Stencil/ Screen printing, also for the solder paste printing/ glue printing process.
-
Best solution for semiconductor printing process.
-
Repeat printing could achieve to ±10μm. (For 01005 component requirement.)
-
Low cost fully auto printer, outstanding & high performance printer in this fields.
-
Equipped best resolution CCD vision alignment system.
