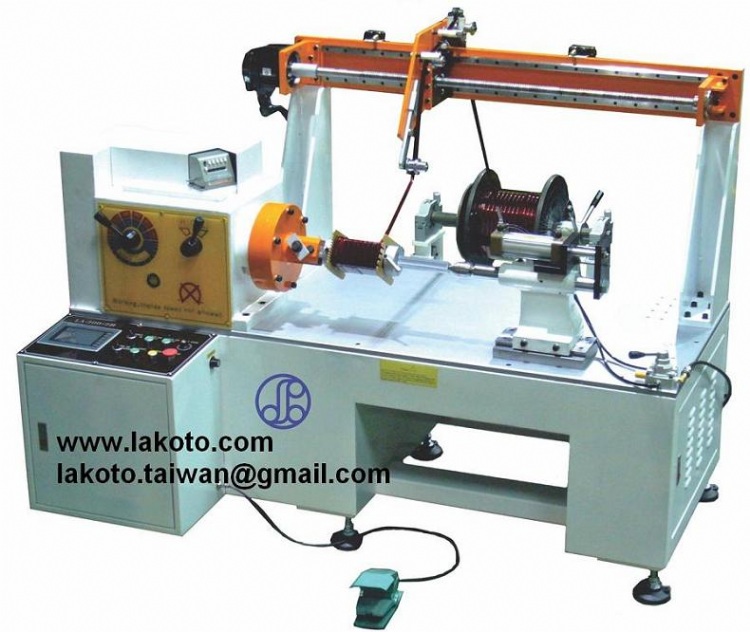

Heavy Winding Machine (For big size wire)
產品型號：LA-300-2B
產品分類：自動化設備/產業機械 / 機械用自動控制電路設計及安裝 / CNC控制器，工具機及產業機械用
產品特色
Features：
1、Touch monitor for programming.
2、English and Chinese version, simple operation (within 5 minutes)
3、Full torsion, stable wire traveling and winding.
4、Equipped the automatic wire feeder.
5、Equipped the air drive type tailstock. The bobbin fixture protects
the bobbin not out of shape.
Specification：
MODEL LA-300-2B Heavy Winding Machine (For big size wire)
Storage 99 files
Main motor 5HP
Wire travels motor 850W servo motor
Spindles turn speed RPM 75 ~RPM1500
Winding spindle load weight MAX 50KG
Wire size 1.Flat Copper (Aluminum) wire
1).Min.: □ 1mm x 5mm 2). Max.:□ 3.55mm x 14mm
2.Round Copper (Aluminum) wire
1). Min : O 0.6mm 2). Max :O 5mm
Winding Max Dia. O 400mm
Spread Max range 300mm
Power supply AC220V ±10% three phase 50/60 Hz
Equipment 1). Speed Adjustable Switch
2). Air Drive type Tailstock
Machine Weight: 800kg Dimensions: 1,800(L)x750(W)x1,450(H)mm
Packing dimensions Weight: 1010kg Dimensions:2,080(L)x1,830(W)x1,730(H)mm
