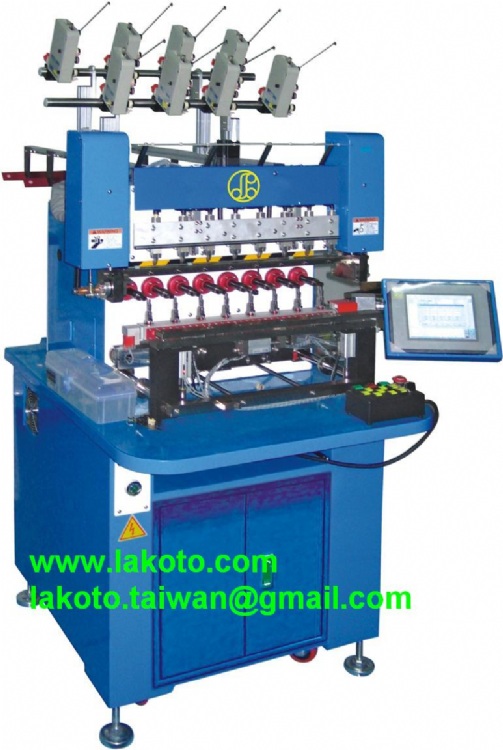

8 spindles Full Automate Winding Machine
產品型號：LA-6608
產品分類：自動化設備/產業機械 / 其他產業機械 / 變壓器、整流器自動化設備
產品特色
Features：
1、Unique touching interface.
◎English and Chinese version, simple operation (within 5 minutes)
◎Shorten of adjustment for programming via touching screen.
◎No need to connect with another PC and keyboard to drive machines
2、Self diagnostics.
3、Synchronous function of 4 Servo motors, PIN spiral wrapping.
4、CNC Servo motor transmission, offers the precise position at desire spindle
speed.
5、Quick and easy jig change.
6、Four kinds of angles for PIN wrapping.
7、High-speeding rotation with precise position, raise the winding capacity with
high quality.
8、Can be operated both individual and with auto production line.
9、Match with auto feeding & unloading function, cutting, and air nipper device
(special devices).
Specification：
MODEL LA-6608 8 spindles Full Automate Winding Machine
LA-6608T 8 spindles Full Automate Winding Machine with the Wire Twister (Wire Skeiner)
Spindles Number of spindles：8
Spindles positioning angle：360°
Spindles turn speed Standard 9,000 rpm (4,500/12,000/18,000rpm for custom made )
Turn clockwise or the anticlockwise
Controller Four-axis synchronous servo control
Positioning accuracy 0.01mm
Nozzle Max traverse X axis: 100mm(layering) / Y axis: 100mm(horizontal ) / Z axis: 55mm(vertical)
Nozzle move speed 20-200mm/sec
Wire size 0.02-0.4mm
Pin wrapping speed Max 150rpm
Pin wrapping angle 0°、45°、90°、135°
Applicable coil spec. Max coil outer dia: 60 / Max coil width: 90mm
Air supply 4-6 kgf/cm2
Storage USB+DOM 128M (256M option )
Power supply AC220V ±10% three phase 50/60 Hz
Power consumption 2kva
Machine Weight: 288kg Dimensions: 1,400(L)x750(W)x1,600(H) mm
Packing dimensions 1,600(L)x1,050(W)x1,750(H) mm
Options 1、Wire Twister (Wire skeiner)
2、Servo Tension unit
3、Auto loading & unloading function
4、Cutting nipper ( It can cut wire size 1mm by changing motor.)
