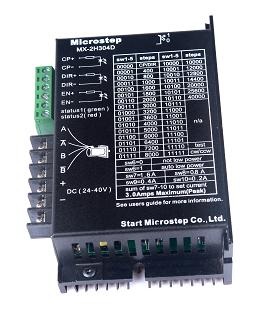

Microstep driver MX-2H304D
產品型號：Microstep driver MX-2H304D
產品分類：工具機產業機械 / 綜合加工機 / 臥式綜合加工機
產品特色
1. MX-2H304D step drives are mainly used to drive 57 type 2-phase hybrid stepper motor which current is below 3A.
2. It is up to 22 segments and Max 40000 steps.
Step could be set by 1 to 5 bit of DIP switch. Signal and doubt pulse mode.
3. Self-test function, Phase memory function, auto half current function.
4. Output max current is 3.0A.
Current could be set bye 7 to 10 bit of the DIP switch (it could set 16 speeds current, setting resolution is 0.3A).
5. MX-2H304D step drives is 24V to 49V DC power supply.
6. Typical value is DC 24V or 32V. Recommend using switch power supply,
Power is over 100W.
