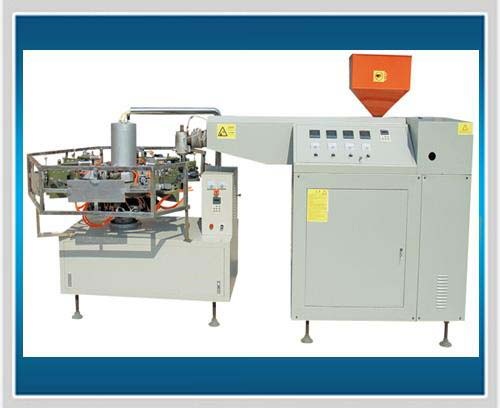

blow molding machine
產品型號：JH-M
產品特色
Rotational blow moulding machine
The machine includes extrusion,molding,orifice-cutting and removing the tailing,Suitable to various middle-hollow bottles whose raw material isPE and PP.Especially used to the following bottles' blowing such as fruit milk bottle,bangbang ice bottle,fruit jelly bottle,pharmaceutical bottle,stickice bottle,Huoxiang Zhengqi Shui bottle,eyedrop bottle,pesticide bottle and cosmetic bottles,middle hollow toys etc.The machine group adoptsscrew-extrusion technology,Plastic extruder adopts automatic temperature control and timing by frequency conversion,Spiral barrel and screw isproduced by famous brand Zhoushan company,Decelerator is produced by Jiansu Changzhou Guomao Guotai Decelerator group,The pneumaticaccessories for mould part are all produced by jinan Huaneng company,Process switch is produced from Panasonic and sensor adjacent switch is fromUS Honeywell.The main character of this machine groupis:1、high efficiency,2、energy-economizing,3、simple operation,It is the ideal automaticbottle-blowing equipment
產品規格
|
Screw diameter( mm) |
55 |
65 |
|
Long radius rate |
1：25 |
1：25 |
|
Extrusion motor power( kw) |
5.5 |
7.5 |
|
Plasticizing capacity(prm) |
20-65 |
20-65 |
|
Plasticizing capacity(kg/h) |
35 |
45-55 |
|
Heating power (kw) |
8 |
10 |
|
Lock mould type |
Pneumatic lock mould |
|
|
Max moulding strength(kg) |
800 |
800 |
|
Mould plate dimension(width× height)mm |
130×200 |
130×200 |
|
Width between mould plate(mm) |
120 |
120 |
|
Max product diameter(mm) |
85 |
85 |
|
Production capacity PCS/day |
10000-150000 |
100000-150000 |
|
Blowing pressure(Mpa) |
0.35-0.5 |
|
|
Cooling water pressure(Mpa) |
0.2-0.3 |
|
|
Gas consumption(m3/min) |
0.4 |
|
|
Electric motor power(kw) |
0.75 |
|
|
Weight (kg) |
750 |
1000 |
|
Appearance dimension(mm) |
2800×1200×1800 |
3000×1200×1800 |
