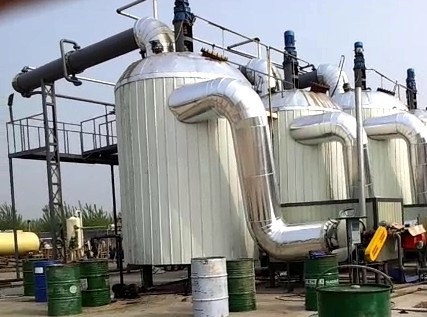

Vessel type waste motor oil recycling equipment
產品型號:VVDU
產品分類:自動化設備/產業機械 / 其他產業機械 / 清洗設備
產品特色
Vessel type vacuum distillation process
Vessel type vacuum distillation process is an updated process of common vessel vacuum distillation. It is a vacuum distillation vessel with heating facility and vacuuming system. It is a simple way to make oil distillation. But traditional vessels we saw many problems, for example, somebody use direct burner at the bottom of vessel, some body use heating coils inside with thermal oil medium, direct heating at the bottom may make the oil uneven heated and heating efficiency is low, generally maximal capacity is around 10TPD,coil type heating is more easy to control, but the problem is after some period heating, the oil sludge is attached on the coils and it is not easy to clean, oil sludge coked on the coils make the heat of thermal oil can’t be effectively conducted to oil in vessel. The plant from our company we utilizing a new heating method called hot wind heating method, the vessel is made of special material, and the external of vessel is a special heating layer with hot wind path, it is a perfect way make the oil heated averagely, and the heating temperature is very easy to control, the maximal temperature can reach 700 degree, we can get the temperature what we want for oil distillation. Except average heating, there is strong vacuum unit to make the oil distilled under high vacuum. Cracking of oil is effectively avoided and the oil index is very good, after rectification with clay we can get good quality base oil(considering the scale, not use furfural rectification). If light fraction content in used oil is high, the oil will be pretreated by Atmospheric distillation tower or an evaporator for water, gasoline, diesel separation.
