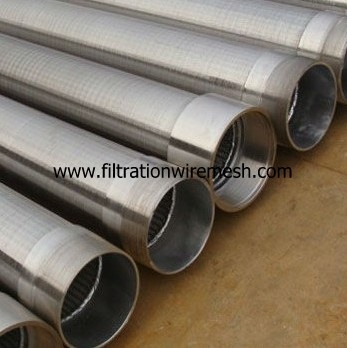

slotted wedge wire screen
產品型號:45
產品分類:自動化設備/產業機械 / 化工機械 / 過濾機
產品特色
Slotted wedge wire screen cylinder are welded by profile V-wire and support wires,it is also called Johnson screen.The features are high ratio filter area because of big opening,vee wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will reduce when water flow in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so make the pipe life longer.Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes.
產品規格
Slotted wedge wire screen cylinder are welded by profile V-wire and support wires,it is also called Johnson screen.The features are high ratio filter area because of big opening,vee wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will reduce when water flow in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so make the pipe life longer.Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes.
Material: Low carbon steel wire,AISI 304,AISI 304L,AISI 316,AISI316L,high quality stainless steel wire.
Application: With the high-precision,our wedge wire as filter elements used in water treatment industry,oil filtration,paper making,refine sugar,we have inside perforated metal and wedge wire tube outside filter.
Specification:
Diameter of cylinder | 25mm,28mm,32mm,38mm,40mm,42mm,45mm,48mm,50mm,53mm, 57mm,58mm,60mm,65mm,68mm,70mm,76mm,80mm,82mm,100mm, 108mm,120mm,133mm,159mm,196mm,219mm,240mm,325mm,400mm, 450mm,480mm,500mm,550mm,600mm,1200mm. |
Slot size | 0.06mm,0.08mm,0.10mm,0.15mm,0.20mm,0.30mm,0.50mm,............6mm |
Length | 20mm to 6000mm |
Notes | Coutom shape and specification can be made as your request. |
