No.25, Ln.198, Hai Fong Third Street, Hai Fong Village, Ching Hsui District, Taichung City, Taiwan 43641
電話：886-4-26201075
傳真：886-4-26202957

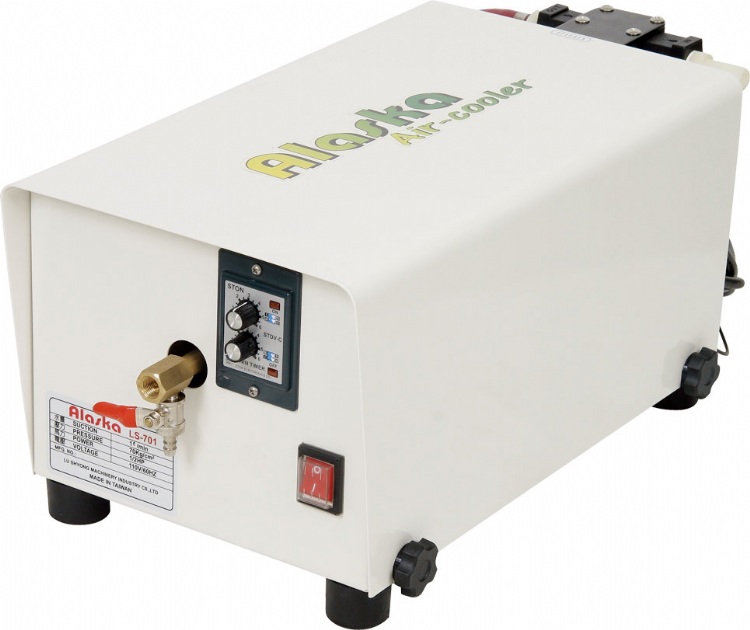

Air Cooler / Misting Machine
產品型號：LS-703L
產品分類：自動化設備/產業機械 / 其他產業機械 / 農業機械
產品特色
1. Pump head made by Brass forged.
2. Triple plungers drove by Angle plate that pressure stead able.
3. Ceramic Plunger hardness and wear and tear resistance.
4. Twin Timer easy setting.
5. Low pressure switch that will cut down Power when the pressure of water source lower than 0.5kg/cm2 for protect the Pump running without water.
6. Oil drain by Ball Cock make maintenance more easy.
7. Outlet and inlet solenoid valve is available optioned, which can anti-water drop when the machine stop running.
8. Heavy duty steel casing with painting coating.
9. Good application for
Landscape: Misting in Yard, Garden, Café,
Industry : Mining factory , Casting factory, Painting factory for anti-dust.
Agriculture: Chicken farm reduce temperature, Green House, Mushroom rising humidity.
Textile industry: Rising Humidity, Antistatic.
Reduce temperature: School, Factory, Warehouse, Sport, Fair that located open door areas.
產品規格
L x W x H (cm) : 70cm x 32cm x 24cm
Pump : Angle plate type ceramic plunger brass head pump
Pressure (kgf/cm2) : 20 ~ 70 kgf/cm2
Discharge Volume (L/min) : 3 L/min
E/M (HP) : 1P x 1HP
Voltage/HZ : 220V/60HZ, 220V/50HZ
Running Time : 10 Sec. ~ 60 Min.
Stopping Time : 1 Min. ~ 60 Min.
Net Weight(kgs) : 28 kgs
Outlet, Inlet Solenoid Valve : Option
