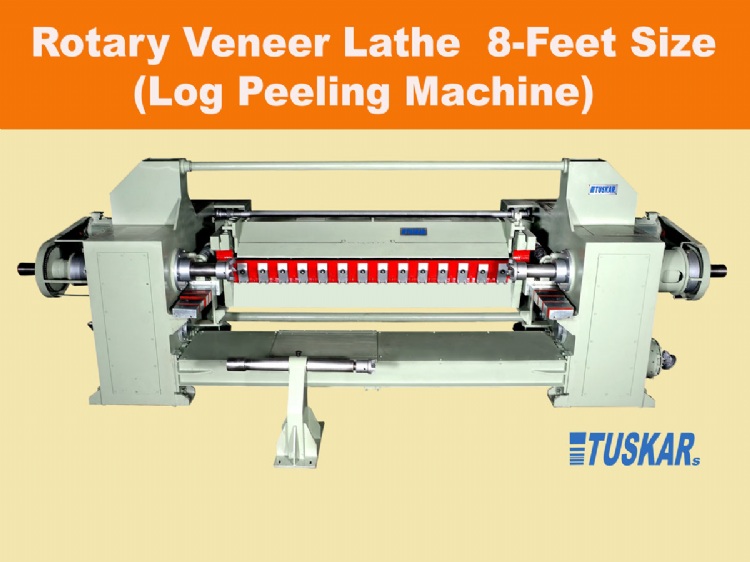

8-FEET ROTARY VENEER LATHE MACHINE (FACE VENEER)
產品型號：R.V.P.H.D 1500 X 2750 C125 LM
產品特色
Heavy Duty Construction
Easy to operate and user friendly
Inbuilt Variable High Speed Technology
Uses Hydraulic and Pneumatic functions
Ideal for Peeling Large diameter Logs
Chucking by Screw Type motorised spindle
Unique design to suit Face and Core veneer production line
Suitable for Tropical and Plantation Wood Species
產品規格
Knife Stock Length ---------- 2750 mm
Swing dia. (Max. Log Diameter) ---------- 1500 smm
Diff. Veneer Thickness ---------- 0.25 mm ~ 3.00 mm (Standard)
Min. Block Length to be peeled ---------- 1350 mm (Using Spindle Attachment Stand)
Min. End Core Diameter ---------- 130 mm
Max. Spindle revolution ---------- 0 ~ 150 rpm. (Variable Speed Drive System)
