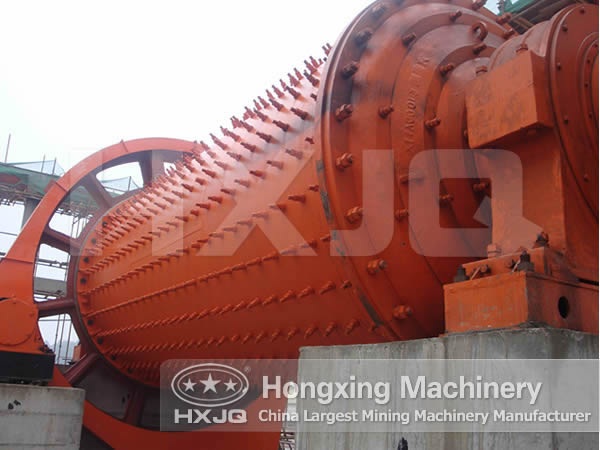

Ball Mill
產品型號:Ф2200×7500
產品特色
.Large capacity mill
2. Longer lining service life
3. Wide application
產品規格
Quick Details
Condition:New |
Type:Ball mill |
Capacity(t/h):0.65-615t/h |
Place of Origin:Henan, China (Mainland) |
Brand Name:Hongxing |
Model Number:Refer to specifications |
Certificate:ISO9001:2008 |
Color:Orange |
Motor power:18.5-4500kw |
Weight:5.5-525t |
Warranty:1 Year |
Feeding granularity:not more than25mm |
Discharging granularity:0.074-0.89mm
|
Ball load:1.5-338t |
Shell rotation speed: 13.8-38r/min |
FOB Price:US $7,936 - 676,200 / Set
Port:Qingdao, Tianjin, Shanghai, Lianyungang or others
Minimum Order Quantity:1 Set
Supply Ability: 100 Sets per month as request
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Packaging & Delivery
Packaging Detail:Standard container, or in bulks, bare main machines, motors and small parts are packed in wooden cases.
Delivery Detail:25 Working Days after placing the order
Specifications
1 .Large capacity mill
2. Longer lining service life
3. Wide application
Company Profile
Henan Hongxing Mining Machinery Co., Ltd. is a joint-stock mining machinery manufacturing enterprise integrated in scientific research, production and marketing. It is located at the High & New Technology Industries Development Zone of Zhengzhou, China with an area of 50,000 m2 which includes 15,000 m2 of standard heavy duty industrial workshop. Equipment are more than 160 pieces, including large and medium sized metal processing, riveting and installing equipment. There are 960 workers including 80 administrators with secondary and senior occupational titles and engineering technicians.
Research and Marketing
In order to promote competitive strength, advanced technologies have been introduced from America, Germany, Japan and Australia to establish international advanced production line, first-class modern testing base as well as research centers of stone crushing, sand making, milling and ore dressing equipment. Scientific management, advanced processing technology and innovative manufacturing theory make the company become the most renowned manufacturing and exporting base in China. Now we have tens of thousands of users from throughout China and more than 30 world markets, such as: Africa, Middle East, Eastern Europe, Southeastern Asia and South Asia.
Honors and Awards
In 2001, Hongxing Brand mining machinery has passed the authority test detected by the State Department and been rated as 'Products with Standard quality and Assured brand'. In December 2003, we obtained the certificate of ' Qualified Products' by the National Quality Inspection. In April 2005, Hongxing Brand is rated as 'Chinese famous brand'. All products have passed the authentication of ISO9001. In addition, we have been awarded 'Civilized Enterprise', 'Key Enterprise', 'Enterprise with Standard Quality' and 'Enterprise with Honesty and Credit Standing' successively.
Commitment
1. We guarantee that our products are all up to standards set for mining machinery.
2. We will deliver products timely by contract.
3. We will supply you with installation drawings, specifications and operation manual.
4. Lifetime warranty and components for products.
Pre-sales Service
1. Model selection
2. Design products designated by clients
3. Our engineering and technical personnel can provide customers with technological process and project on site.
In-sales Service
1. Product acceptance
2.Help formulate construction scheme for clients
After-sales Service
1.Specialized post-sales service staff will instruct installation and debugging on site
2.Installation and debugging
3.Train technical staff for clients on site
Model | Shell rotation speed (r/min) |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
Total weight (t) |
Ф900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
Ф900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Ф1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
Ф1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
Ф1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
Ф1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
Ф2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
Ф2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
Ф2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
Ф2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 60 |
Ф2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62 |
Ф2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
Ф2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 58 |
Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 69 |
Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 | 94 |
Ф2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
Ф3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | As per process conditions | 630 | 137 |
Ф3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | As per process conditions | 850 | 158 |
Ф3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | As per process conditions | 1250 | 175 |
Ф3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 | 252 |
Ф4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 | 203 |
Ф4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 | 218 |
Ф4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 | 238 |
Ф4500×6400 | 15.6 | 172 | ≤25 | 0.074-0.4 | 54-306 | 2000 | 280 |
Ф5030×6400 | 14.4 | 216 | ≤25 | 0.074-0.4 | 68-386 | 2500 | 320 |
Ф5030×8300 | 14.4 | 266 | ≤25 | 0.074-0.4 | 88-500 | 3300 | 403 |
Ф5500×8500 | 13.8 | 338 | ≤25 | 0.074-0.4 | 108-615 | 4500 | 525 |
If you want to know much more information about our products and company, you can visit the following website: http://www.hxjqchina.com.
