Veneer Dryer
產品型號：BS/8S4D-JD/HE
產品分類：木工產業機械 / 薄片/合板製造 / 合板二次加工整廠設備
產品特色

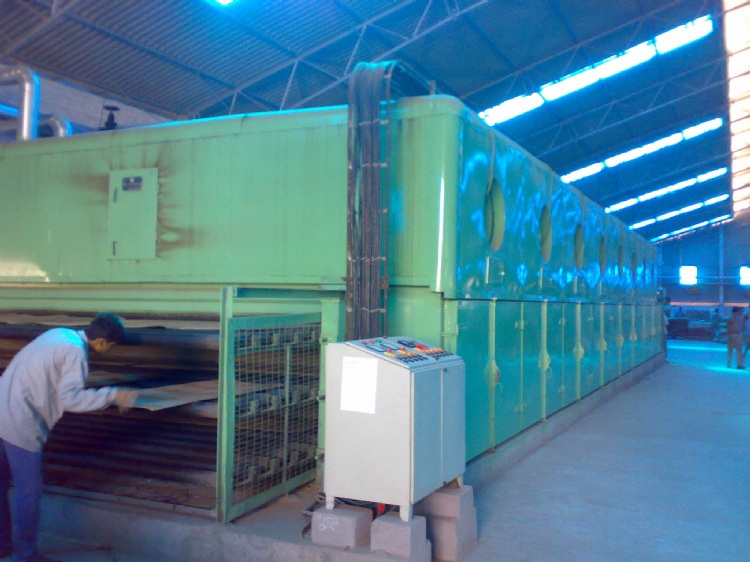

ROLLER VENEER DRYER
The Jet Ventilated RollerTrackVeneer Dryers are available in different models as per
the production requirement by addition & deduction of different Sections & Decks.The machine has compact-Drying Chambers - called as Sections along with Multiple Double RollerVeneer Feeding Decks and cooling section, fitted with Aluminum Axial Flow Fan attached with special blower housing, Heating Coils with extra-wide fins, Double Jet Nozzles Jet Box for top & bottom of each deck throughout the length of the dryer and complete with Motors, Control Panel, Dynodrive /A.C. Drive (InfinitelyVariable Speed Unit), DigitalTemperature Indicator; Link Chain and Gear Box.The entire outside covering of the dryer is perfectly insulated with heat resisting insulated layer (Box) of 100mm / 75mm thick as per requirement all round of the Dryer except floor.
Standard sizes of the jet dryers are: 4 section 3 deck, 6 section 3 deck, 8 section 3 deck, 8 section 4 deck of 15' Standard/Midi, 12' Midi respectively.
Dryers of 10'Mini with standard configurations are available on demand.
產品規格
TECHNICAL DATA - 15' STANDARD
|
|
Roller Size |
Production in Sq.ft. per 24 Mrs. on 2 mm thick |
|
Requirement of : |
|
|
|
dried veneer basis |
|
|
|
JET DRYERS |
Length Dia |
Steam Thermic |
Power |
Steam Thermic Fluid |
|
|
|
Fluid |
|
kg/hr. Kcal/hr. |
|
4 Section |
4600 112 |
115000 130000 |
20.5 HP |
650 350000 |
|
3 Deck |
mm mm |
|
|
|
|
5 Section |
4600 112 |
140000 165000 |
25.0 HP |
750 400000 |
|
3 Deck |
mm mm |
|
|
|
|
6 Section |
4600 112 |
195000 220000 |
31.0 HP |
950 500000 |
|
3 Deck |
mm mm |
|
|
|
|
8 Section |
4600 112 |
285000 320000 |
43.5 HP |
1200 650000 |
|
3 Deck |
mm mm |
|
|
|
|
6 Section |
4600 112 |
270000 300000 |
41.5 HP |
MOO 600000 |
|
4 Deck |
mm mm |
|
|
|
TECHNICAL DATA - 15' ECO
|
|
Roller Size |
Production in Sq. ft. per 24 Mrs. on 2 mm thick |
|
Requirement of : |
|
|
|
dried veneer basis |
|
|
|
JET DRYERS |
Length Dia |
Steam Thermic |
Power |
Steam Thermic Fluid |
|
|
|
Fluid |
|
kg/hr. Kcal/hr. |
|
4 Section |
4600 89 |
90000 100000 |
18.5 HP |
550 300000 |
|
3 Deck |
mm mm |
|
|
|
|
6 Section |
4600 89 |
160000 180000 |
29.0 HP |
750 400000 |
|
3 Deck |
mm mm |
|
|
|
|
8 Section |
4600 89 |
250000 280000 |
36.0 HP |
950 525000 |
|
3 Deck |
mm mm |
|
|
|
|
6 Section |
4600 89 |
225000 250000 |
40.5 HP |
1000 550000 |
|
4 Deck |
mm mm |
|
|
|
|
TECHNICAL DATA - 12' MIDI |
||||
|
|
Roller Size |
Production in Sq.ft. per 24 Mrs. on 2 mm thick dried veneer basis |
|
Requirement of : |
|
JET DRYERS |
Length Dia |
Steam Thermic Fluid |
Power |
Steam Thermic Fluid kg/hr. Kcal/hr. |
|
4 Section |
3670 89 |
75000 85000 |
17.0 HP |
500 250000 |
|
3 Deck |
mm mm |
|
|
|
|
6 Section |
3670 89 |
115000 130000 |
25.5 HP |
650 350000 |
|
3 Deck |
mm mm |
|
|
|
|
8 Section |
3670 89 |
200000 225000 |
36.0 HP |
950 525000 |
|
3 Deck |
mm mm |
|
|
|
|
6 Section |
3670 89 |
180000 200000 |
40.5 HP |
1000 550000 |
|
4 Deck |
mm mm |
|
|
|
