45度手动倾斜升降推台锯
產品型號：MJ6132YII
產品特色
45度手动倾斜升降推台锯
价格优势
產品規格

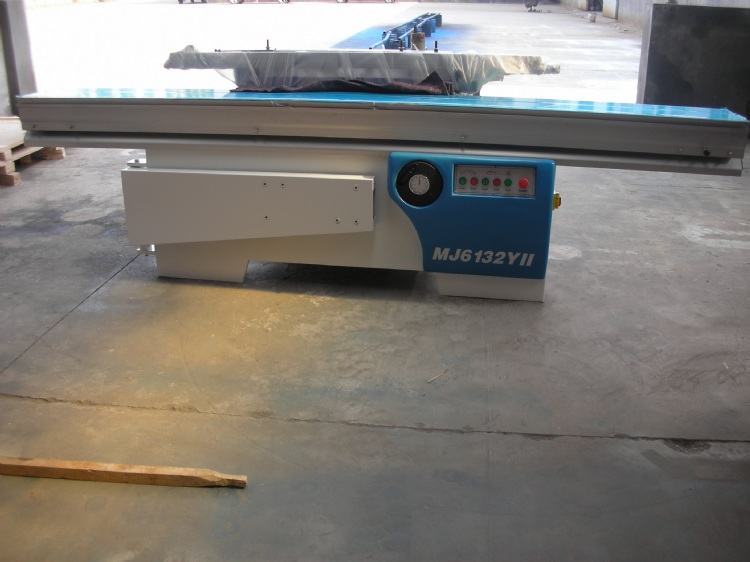

Sliding table saw MJ6132YII with with competitive price
| Model | MJ6132YII | ||||
| Overall dimensions | 3000x3150x900mm | ||||
| Sliding table size | 3200x375mm | ||||
| Length of cut | 3100mm | ||||
| Width of cut between saw blade and rip fence | 1250mm | ||||
| Height of cut | 80mm(45°Max 55mm) | ||||
| Saw blade diameter | 300mm | ||||
| Scoring blade diameter | 120mm | ||||
| Main saw blade speed | 4000/6000rpm | ||||
| Scoring saw blade speed | 7000rpm | ||||
| Saw spindle diameter | 30mm | ||||
| Scoring spindle diameter | 20mm | ||||
| Main motor | 4.0kw or 5.5kw | ||||
| Vice-motor | 0.75kw | ||||
| Main saw blade titling angle | 45°-90° | ||||
| Net weight | 850kgs | ||||
Features:
with manual rise/fall and tilt adjustment(0-45°) of saw blade.
