產品型號：YX series

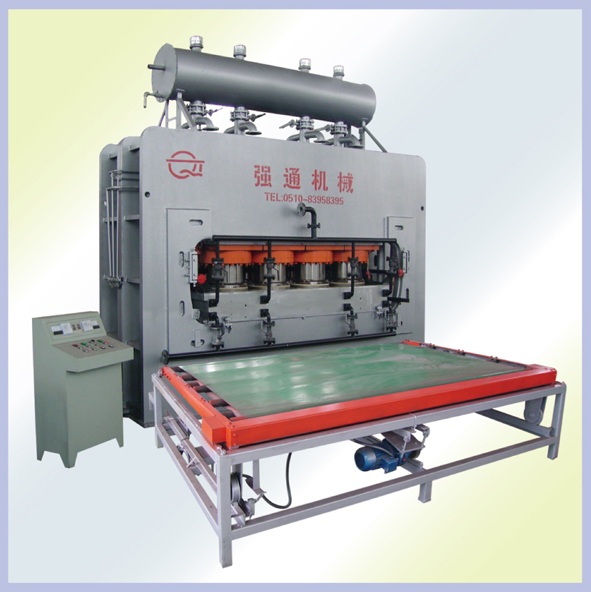

Hot press machine for many kinds of laminating boards
Short cycle hot press machine for laminate
MDF/HDF/PB lamination machine

Hydraulic Press for Short Cycle Lamination on panels by melamine paper.

1)-Pusher & Lifting Table

2)-Brusher & Rollers

3)-Auto vacuum carrier

4)-Belt loader

5)-Hot Press

6)-Vacuum pad unloader

7)-Cutter

8)-Roller conveyor

9)-Center

10)-Auto vacuum carrier for inspection

11)-Lifting table for grade A

12)-Lifting table for grade B

Model(Double sides) Table:

Model Size		Nominal pressure (KN)	End panel size (mm)	Max pressure of work piece (kg/cm2)	Main oil cylinder (diameter x pcs)
YX900	4x8 ft	9000	1220 x 2440	30.2	φ280 x 6
YX1200	4x8 ft	12000	1220 x 2440	40.3	φ320 x 6
YX1400	4x8 ft	14000	1220 x 2440	47	φ340 x 6
	5x8 ft	14000	1550 x 2440	37	φ340 x 6
	6x8 ft	14000	1830 x 2440	31.3	φ340 x 6
YX1600	4x8 ft	16000	1220 x 2440	30.2	φ320 x 8
	6x8 ft	16000	1830 x 2440	35.8	φ320 x 8
	6x9 ft	16000	1830 x 2750	31.7	φ320 x 8
	7x9 ft	16000	2100 x 2750	27.7	φ320 x 8
YX2000	4x8 ft	20000	1220 x 2440	67.1	φ420 x 6
	6x9 ft	20000	1830 x 2750	39.7	φ420 x 6
	7x9 ft	20000	2100 x 2750	34.6	φ420 x 6
YX2400	4x8 ft	24000	1220 x 2440	80.6	φ400 x 8
	6x9 ft	24000	1830 x 2750	47.6	φ400 x 8
	7x9 ft	24000	2100 x 2750	41.5	φ400 x 8
	6x12ft	24000	1830 x 3660	35.8	φ400 x 8
YX2800	4x8 ft	28000	1220 x 2440	94	φ420 x 8

Applications:

--laminated furniture

--laminated flooring

Automatic and semi-automatic line are all avaliable for manufacturing.
