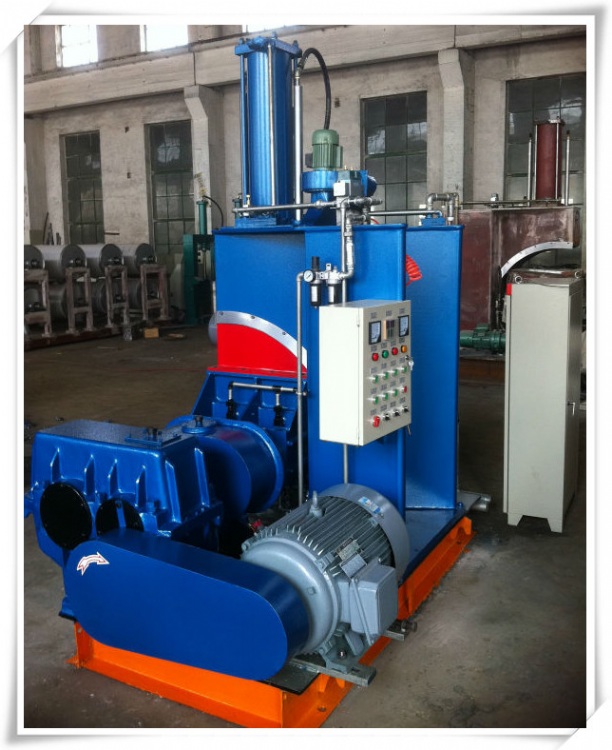

Rubber kneader machine
產品型號：XN-75*30
產品特色
1. Bran-new
2.Accessories complete
3.Perfect after-sales service
產品規格
|
Item |
X(S)-3x32 |
X(S)-10x32 |
X(S)-20x32 |
X(S)-35x32 |
X(S)-55x32 |
X(S)-75x32 |
X(S)-110x32 |
X(S)-150x32 |
|
|
Total volume of kneading chamber |
L |
8 |
25 |
45 |
75 |
125 |
180 |
250 |
325 |
|
Total volume of mixing chamber |
L |
3 |
10 |
20 |
35 |
55 |
75 |
110 |
150 |
|
Driving motor power |
KW |
5.5 |
15 |
30 |
55 |
75 |
110 |
185 |
220 |
|
Tipping motor power |
KW |
0.55 |
1.1 |
1.5 |
2.2 |
3.0 |
4.0 |
5.5 |
5.5 |
|
Tipping Angle |
|
135° |
140° |
140° |
140° |
140° |
140° |
140° |
140° |
|
Rotational speed pf the rotor(front /back) |
R/min |
0-60， 32/24.5 |
30/23.5 |
30/25 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
|
Flow rate of compressed air |
Mpa |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
Flow rate of compressed air |
M³/min |
≥0.3 |
≥0.5 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
≥1.5 |
|
Pressure of cooling water(rubber mixing) |
Mpa |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
|
Pressure of hated steam |
Mpa |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
Overall dimensions(L*H*W) |
MM |
1600*960*1750 |
2580*1300*2280 |
2630*1520*2550 |
3200*1900*2945 |
3360*1950*3050 |
3760*2143*3135 |
4075*2712*3580 |
4200*3200*4000 |
|
Weight |
kg |
2000 |
3300 |
4500 |
6500 |
7200 |
10000 |
14500 |
19500 |
Model2.100% real manufacture meet all your requests;
3.It has passed CE,ISO Certification;
4.It provide one year quality guarantee and long-term technical support;
5.Provide all kinds of rubber machine: Vulcanizing machine, hydraulic press,Rubber sheeting mill,Rubber extruder,Vertical rubber cutter ,Rubber mixing mill,Rubber refining mill,Rubber crushing mill,Inner press vulcanizer,Kneader,Molding machine
6.products have been exported to all around the world, such as America, UK, Ukraine, Chile, Sri Lanka, Indonesia, Thailand
