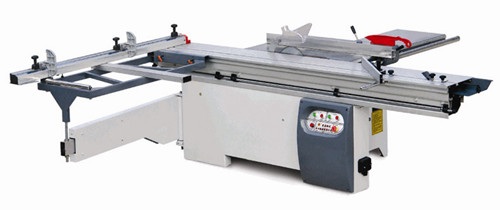

Woodworkig precision sliding table saw
產品型號：MJ6128
產品特色
Apply to processing all kinds of density boards, shaving boards, wooden-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
Movable table guide track is plating chromium steel bars structure, exact and durable.
Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
With oxidation treatment, movable table surface is beautiful and hardness.
The main saw blade’s up and down is controlled by electric equipment.
產品規格
|
Dimension of sliding table |
2800×310mm |
|
Cross cut capacity |
2800mm |
|
Width of cut between saw blade and rip fence |
900mm |
|
Saw blade |
300mm（φ250-φ300） |
|
Height of cut |
70mm |
|
Speed of main saw blade |
4500/6000rpm |
|
Spindle diameter |
30mm |
|
Tilting saw blade |
90° |
|
Main motor |
3kw |
|
Scoring saw blade |
120mm |
|
Speed of scoring saw blade |
8000r/min |
|
Spindle of scoring saw |
20mm |
|
Scoring motor |
0.75kw |
|
Weight |
640KG |
|
Overall dimensions |
2800×2550×900mm |
