Applications

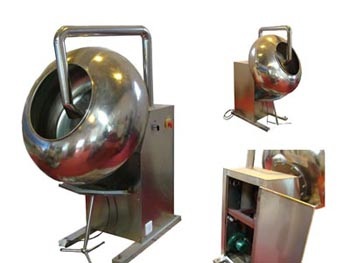

The flavored  food mixer machine is mainly used in pharmaceutical  and food industry, snack food ,puffed cereal

of sugar&chocolate coating production, can also be used for light industry, chemical industry, spherical or granular materials, rolling,

mixing,and lighting. For example: chocolate polishing, including peanuts,the sugar, spices, manufacturing balls,

pearl tapioca balls, rolling desiccant.

Structure

From the aircraft fuselage, worm gear box, sugar pot, heating equipment, fans, electrical and other major components,

which by the motor through belt driven worm gear, worm, bring sugar-coated pan rotation, under the action of centrifugal

 force, so that materials in the pot internal friction for rolling up and down, to sugar mixture, Pill, and lighting effects. www.sherocn.com

Feature:

1)the polishing machine can add sugar and chocolate sprinkle system,the chocolate  thickness on

material can be 0.5-3mm;

2)the mixer can add temperature cotrol system;

3)heating plate under the pot;

4)the mix pot speed can adjust if need.

Material

Full mixing machine is s/s 304 with thickness 2mm.

Technology Detail

Items
 SH600
 SH800
 SH1000
 SH1250

Diameter  mm
 600
 800
 1000
 1250

Rotate speed    r/min
 50

can add speed adjuster device
 32


 32


 25



Motor power    KW
 0.75
 1.1
 1.5
 2.2

Air blower power   W
 100
 180
 180
 370

Heating Wire power  W
 800
 2000
 3000
 3000

capacity    kg/one time
 20-30
 30-50
 50-70
 80-150

size   mm
 650x450x920
 925x900x1400
 1100x1100x1500
 1200x1250x1630

Weight    kg
 85
 205
 220
 350
