Hot Dipped Gal Welded Wire Mesh

放大圖片

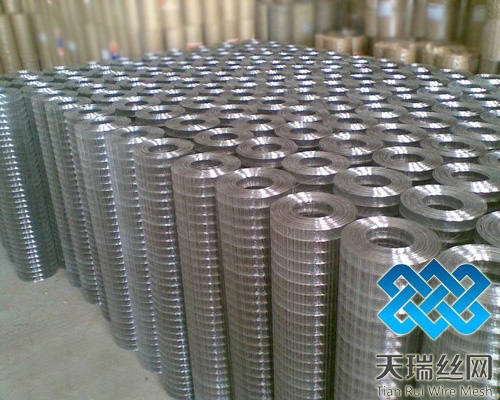

Hot Dipped Gal Welded Wire Mesh

產品型號：TR

產品分類：零組件配件 / 金屬製品 / 鋼鐵線材

立即線上詢問

產品特色

This kind of welded wire mesh is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
Hot dipped zinc coated welded wire mesh is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

產品規格

Features and Application:
It is very popular in breeding industry: Can be made into various animal cages or fences for breeding with its excellent anti-corrosion property. The zinc coating offers a kind of decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine sieving industries as sieving screen. The low carbon steel wire for making of hot-dipped welded wire mesh offers flexibility that can be made in many further fabrication applications.

We supply hot dipped galvanized welded wire mesh in the following forms:
In rolls;
In panels.
Finish: Hot-dipped zinc coating

Opening
In inch	In metric unit(mm)	Wire Diameter(BWG)
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
2" x 3"	50mm x 75mm	11,12,13
3" x 3"	75mm x 756mm	12,13,14,15,16
2" x 4"	50mm x 100mm	13,14,
4" x 4"	100mm x 100mm	11,12
Technical Note: 1 Standard roll length: 30; Width: 0.5m-2.2m 2 Special sizes available at request
