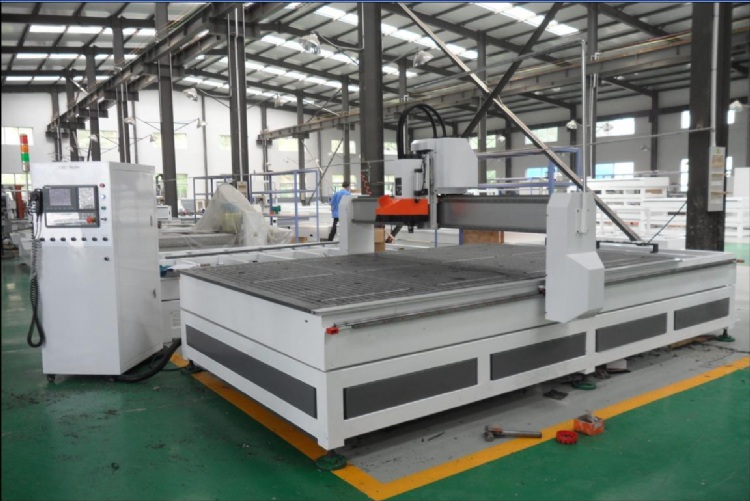

ATC CNC Router K45AT/P --linear tool changer
產品型號:K45AT/P
產品特色
1) support 8 tools ATC system, tool magazine is with straight line/linear form. 2)automatically senses the wrong tool in the tool magazine, to avoid no operation and tool collision. 3)Intelligent sensor system, automatically sense whether the tool in the spindle, can avoid the collision and faulty operation. 4) It automatically senses whether the pressure could meet the requirements, and is with the function of lower pressure alarming. 5) The system could automatically store the location of the tool and tool length. It only need to re-measure the tool length for every time tool changing.
產品規格
Model |
K45AT/P |
X-Y-Z axis working area |
1300 x 2550x 300mm |
Resolutions |
0.0025mm |
X-Y movement |
Rack and pinion, gear drive/Taiwan |
Z movement |
Ball screw drive/Germany |
Guide |
Linear ¢20 square/Taiwan |
Max. speed |
35,000mm/min |
Max. cutting speed |
25,000mm/min |
Tool magazine style |
linear |
Spindle |
9kw HSD auto tool-changer ISO30 |
Inverter power |
11kw |
Drive motors |
servo |
Working voltage |
AC380V/50-60Hz, 3-phase |
Collet |
ER32-12.7mm,6mm,3.175mm |
Software |
Type3 Software/France |
Controls |
SYNTEC/Taiwan |
Equipment included |
a. Auto cut adjusting device b. b.Oil lubrication system |
Equipment optional |
a. Vacuum pump b. b.wentai V9 software c. other control system d. dust collector |
Packing dimensions |
3750*2280*2100mm,1400kgs |
