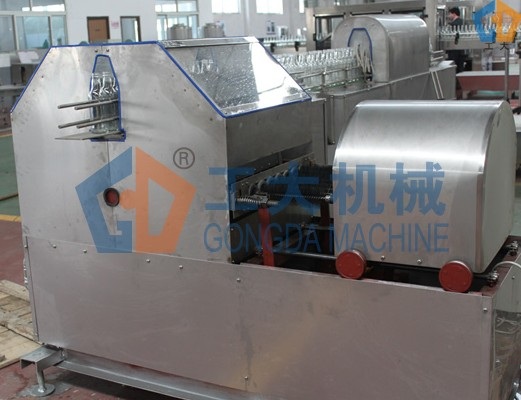

Automatic glass bottle-washing machine
產品型號：GD-XP
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 自動充填／栓蓋機、封瓶／盒蓋機
產品特色
Automatic Glass Bottle Washing Machine
1. Principal features
The machine contains the inner layer washing machine, the outside remove labeling machine, and the soaking machine etc. And we could dispose soaking groove and electric control system, with the characters of high efficiency of washing bottle, low bottle broken, rate, saving water and electricity.
2. Principal parameter
產品規格
Bottle specification:
Bottle outside diameter: 56-64mm
Bottle height: 140-220mm
Produciton capability: 3000-4000 b/h
Lnner layer washing machine
Main motor power: 1.1kw
Inside washing motor: 0.55kw
Inside washing motor: 505r/min
Pressure of water supplying: 0.3-0.4Mpa
Bottle feeding speed: 7.24m/min
Driver plate speed: 7.28r/min
Outer size: 1750×1320×1320mm
Weight: 1100kg
Outside remove labeling machine
Orbit motor: 0.75kw
Orbit speed: 11.13r/min
Outside washing motor: 0.75kw
Water pump motor: 0.37kw
Water consumption: 2.8m3/h
Outer size: 2900*800*1350mm
Weight: 600kg
Steeper
Liquid temperature: 45-65oC
Solution concentration: 1.4%
Outer size: 2400*2650*2400mm
Weight: 450kg
