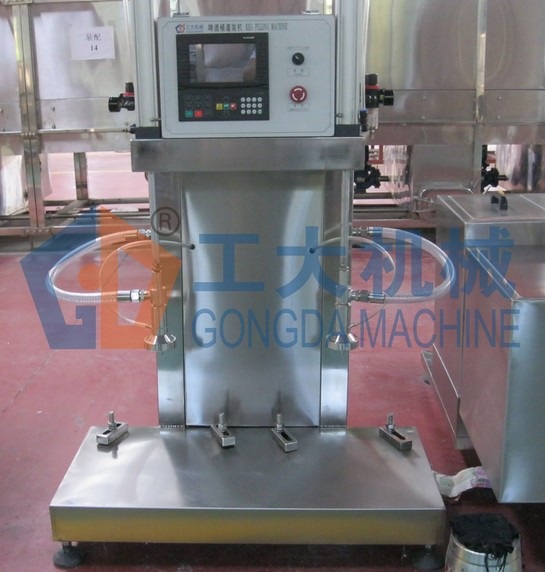

Beer keg washing filling unity machine
產品型號:GD-GZ-01
產品分類:自動化設備/產業機械 / 自動化設備 / 自動送料設備
產品特色
Beer Keg Washing Filling Unity Machine
Features:
1. The process of washing, sterilizing, filling is finished automatically.
2. Filling volume is controlled by high-speed positioning filling skill system
3. The temperature of hot water and lye is controlled automatically.
4. Available to connect more than one machine together to reduce the investment.
5. Auto washing of the beer pipeline CIP
6. Figure statistics and display function
7. Check keg spear automatically, make sure the washing quality and filling volume.
8. Suitable for different beer keg sizes.
Working Procedures:
Location—scavenge wine remains—mixed hot mater washing—blow -- sterilize by lye—recycle—hot water washing—recycle—sterilize by steam—sterile water washing—recycle—Preparation of CO2 pressure --filling
產品規格
Equipment fittings:
Siemens LOGO PLC
Stainless steal control crow valve
Pneumatical component of Taiwan Yadake
Main Parameter:
Filling accuracy: 0.5%
Capacity: 30-40bottles/hour
Compressed air: pressure: >0.4Mpa
Wince resource pressure: 0.25~0.4MPa
Power: AC220V
Voltage: DC24V
Equipment size: 900mm x1530mm x1950mm
