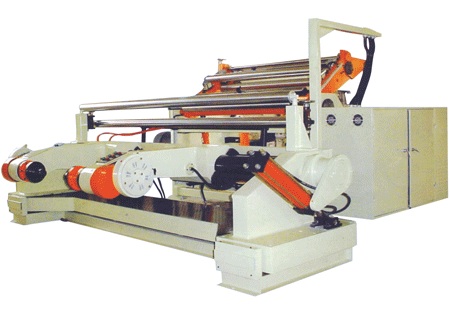

Paper slitting rewinder
產品型號：DingTec PSR-1800
產品分類：自動化設備/產業機械 / 造紙機械 / 紙類分條、複捲機
產品特色
* High speed rewinding, up to 400m per minute
* Cutting width, up to 2.15m
* Hydraulic feeding arm for 3"/6"/12" paper core
* Single or two collecting shafts are available upon request
* Main electical components (PLC) and motors are imported from Japan or USA
* Tension controling system made by Taiwan technologies
產品規格
| Models | PSR-1300 | PSR-1600 | PSR-1800 |
|
Paper loading platform without core,with fully hydraulic system |
|||
| Paper media |
White paper/Kraft paper/Cardboard |
||
| Paper weight |
50g∼500g/sqm |
||
| Max. diameter of input roll | 1600mm | ||
| Max.with of input roll | 1300mm | 1600mm | 1800mm |
| EPC edge tracing system | |||
| Tension of input roll | 2×20kg magenetic powder braking system automatic tenion controlling decive | ||
| Max.cutting width | 1300mm | 1600mm | 1800mm |
| Min.cutting width | 20mm | ||
| Max.cutting speed | 400m/min | ||
| Max.diamerter of rewinding roll | 800/3" 120mm/6" | 800mm/3" 1500mm/6" | 800mm/3" 1500mm/6" |
| Power of rewinding motor unit | 13kW | 15kW | 17kW |
