氣洗 柱塞灌裝 封蓋機
產品型號:氣洗 柱塞灌裝 封蓋機
產品分類:包裝印刷暨食品及製藥機械 / 包裝機械 / 自動計量充填包裝機
產品特色

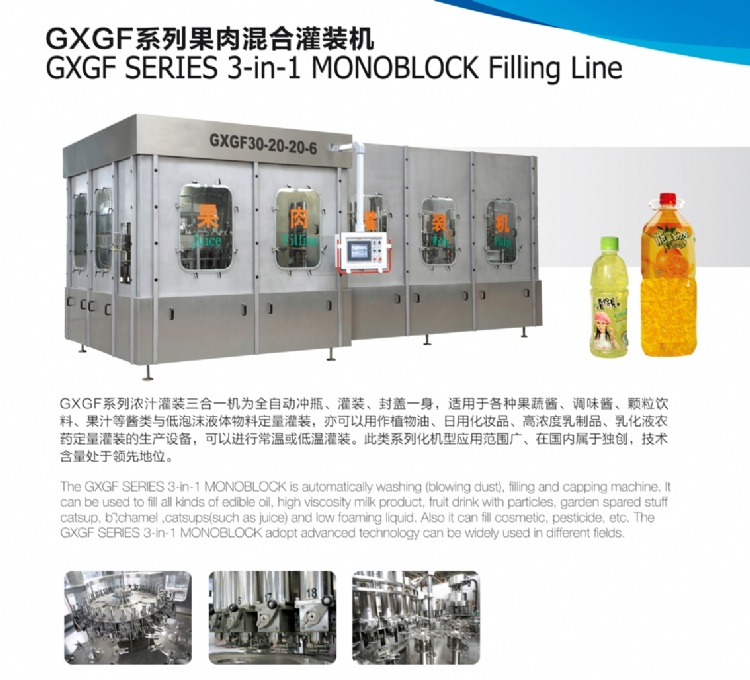

This automatic blowing dust, filling and capping machine, which has thirty heads, could be applicable fix quantify filling and capping of all kinds of seed oil, garden spgarden stuff catsup, bechamel, granule drink and catsups (such as juice). Its function is followed: blowing dust with aseptic pressure gas; automatically chain control the liquid level of filling jar and feeding and material temperature; feed bottles by air conveyer (or screw convey);automatically open valve and feed caps with bottles; do not open valve and feed caps without bottles .
Its characteristics are rational design, compact conformation and convenience operation and maintenance. Main machine is adopted frequency speed control, it runs placidity and credibility. Material of limb contacted with the material and appearance accessory is high quality stainless steel. After exchanging several accessories, it is used different kinds of PET bottle’s fix quality filling
Operation of machine is controlled by advanced touch screen, it realized the communication with man and machine. Function of control system is followed: product speed control, automatic stop with fault and take count of output and so on.
產品規格
Main Cnfiguration and Work Pinciple
1 Main configuration: this machine is composed of frame and window, gearing, rinsing system, filling system, bottle conveying device, fixed quantify guide rail, capping system and electric control and so on.
(1) Frame and window: it is used to install driving system, support gyration parts of filling machine and safety window out of main machine.
(2) Gearing: there are some parts on the working bedplate such as conveying device for feeding bottles and outputting them, main dial, column of ration guide rail and so on. Under the working bedplate, there is gearing including main motor, driving worm gear cast, overloading protection and braking device. They are used to assure parts above mentioned running.
(3) Blowing dust system: it is a compressed air rinsing system.
(4) Filling system: this system is the core of whole machine, including filling jar, valve body, piston, etc.
(5) Bottle conveying device: it is the bottle conveying system of blowing, filling and capping process, including bottle feeding air conveyor, bottle feeding and outputting thumb wheel, different kinds of bottleneck baffle, etc..
(6) Guide rail: In order to control the material filling amount during filling process, it could be adjusted its stroke within a certainty range.
(7) Capping system: it includes capping heads, high efficiency cap Unscrambler, cap slide, positive and negative cap inspection wheel, scale cap inspection, cap taking device and so on. The capping quality is very well.
