產品規格



Specification:

Working width
3300-4800mm

Stroke frequency
1200 times/min

Punch distance
25mm, 30mm, 40mm, 50mm

Needle density
4000 ×2 needles/m – 8000 ×2 needles/m

Diameter of input roller
Φ150mm

Diameter of output roller
Φ200mm

Input speed
0.5-6m/min

Output speed
0.7-8m/min

Total installed power
41.75 kw

Width of final product
4m

Outside dimension
(length X width X height)
(width +1000)×1600×3100mm

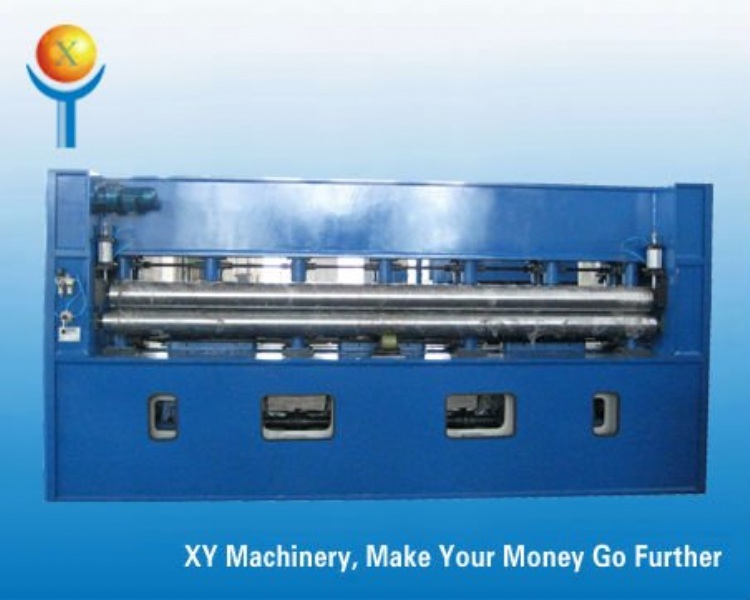

Working principle and application of products
This equipment is only a unit machine in the non-woven fabric production line. It is to further impale the fabric which already has the initial tension after pre-needle punch machine. Then the fiber entwists together to have some tension in both vertical and horizontal direction, the various needle punched products ( such as synthetic leather base cloth, geotextile, base cloth of water-proof asphalt felt, various kinds of filtration material, finishing material, auxiliary material for clothing, blanket and carpet) will be made from this fabric.
Process flow of the Production line:
material - pre-opener - main opener –cotton accumulator - feeding - carding - cross layer –feeding machine - pre-needle machine - upward stroke needle machine - downward stroke needle machine - upward stroke needle machine - calender cotton stock frame - cutting and coiling
Main products:
Down-stroke needle punching machine.
Up-stroke needle punching machine.
Upper & Down needle punch machine.
Double-side needle punching machine.
Glass fiber needle punching machine.
Ceramic fiber needle punching machine.
Carbon fiber needle punching machine.
In addition, we also produce
Loose type setting production line which consists of Uncoiler - cloth container - dipping machine - dip calender machine - thermal-setting machine - cloth container - cutting & coiling

Punched Geotextile production line which consists of Web-lapping (layer) machine - feeding machine -pre-punch machine - main punch machine - main punch machine - fabric container frame - cutting and coiling

production line for after-treatment of synthetic leather base cloth which consists of Uncoiler - screen thermal-setting machine - ironing machine - fabrics container frame - cutting and coiling

production line for the thermal-setting of asphalt felt base cloth which consists of Uncoiler - screen thermal-setting machine - fabrics container frame - cutting & coiling

production line for the glue dipping of asphalt felt base cloth
