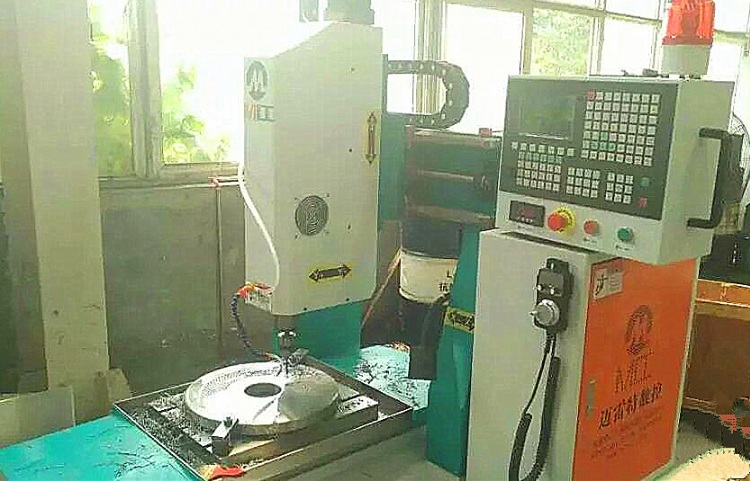

迈雷特数控平模钻孔机
產品型號:MLT-P1080
產品分類:自動化設備/產業機械 / 自動化設備 / 自動化控制系統
產品特色
饲料平模钻孔、五金、阀体行业散热管管板钻孔
產品規格
Equipment features:
- High-automation, special design for the flat die process
- Low consumption on electricity
- High quality, economical use
- Small machine size but long travel range, high rigidity
- Drilling depth up to 150mm
- All distributed holes are no needed to program, easy to operate
- User-friendly interface on CNC control system is easy to operate
- User only needs to key in processing parameter
- Drilling hole automatically, economical for mass production
- All holes on flat die are equilateral triangular arrangement to ensure the same thickness
- Automatically memory when power off shortly, no need to re-processing that reduce the downtime
- Overload protection (optional) and machine may downtime in short time if the machine load is too large caused by other reason
- So that it will avoid any unnecessary lose
Service item:
- Machine warranty period: 12 months once the customer receives the machine
- After 12 months, we may answer the customer's question on line or by e-mail within 24 hours
- Mltor will prepare one more set of quick-wear components with the machine for the customer
- Mltor will not provide or change any part or component for free if the customer damages them abnormally
- Customer needs to purchase them separately
- Mltor will afford the customer's technician local transportation, accommodation and catering cost when the customer's technician comes to Mltor factory to have train or inspects the machine before the machine delivery
- Customer will afford their technician travelling cost
- In warranty period, if the customer requests Mltor engineer to support in foreign country, Mltor will support to check equipment and train the customer technician for free but the customer needs to afford Mltor's engineer travelling expenses, local transportation, accommodation and catering cost.
Main configuration | |
Maximum drilling hole depth | 150mm |
X/Y axis travel range | 800 x 1000mm |
Axis Z travel range | 400mm |
Drilling diameter | 1-16mm |
Workbentch size | 850x1050mm |
Clamping way | T-type groove |
Positioning accuracy | 0.02mm |
Spindle speed | 0-3000rpm (stepless speed regulation) |
Spindle power | 3kW |
Control system interface | Chinese/English |
