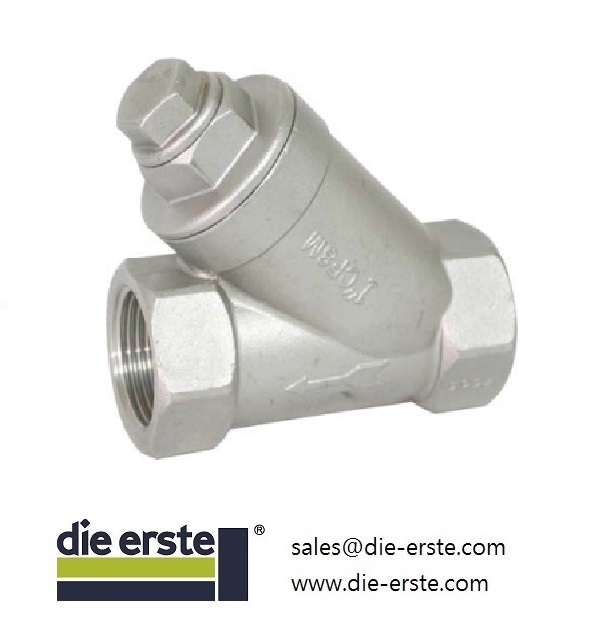

Y-Type Thread End Strainer
產品型號：JY-800S Rating: 800 CWP
產品分類：自動化設備/產業機械 / 鋼管製造機 / 鋼管製造機
產品特色
Flow bore: Full Port.
Rating: 800WOG (PN40)
Temperature: -20°C ~ 180°C (PTFE Seal)
Materials: ASTM A351 CF8M/ CF8
Size range: 1/4" ~ 3"
End Connections: Threaded, Socket-Weld.
產品規格
Design feature:
Y-Type Low pressure drop streamlined design.
Generously sized strainer screens.
Compact end to end dimension.
With Stainless Steel SS316 12 Mesh Screen, Other mesh upon request.
With Drain Plug.
Investment cast body construction.
DIN EN10204-3.1 Certificate Available
Specifications:
Construction: Y type, Screw-in cap design.
Standards:
Basic Design to ANSI B16.34
Female Thread: NPT, PT, DIN 2999(Rp), ISO-228(G).
Inspection & testing according to API 598.
PED 97/23/EC; ISO 9001
