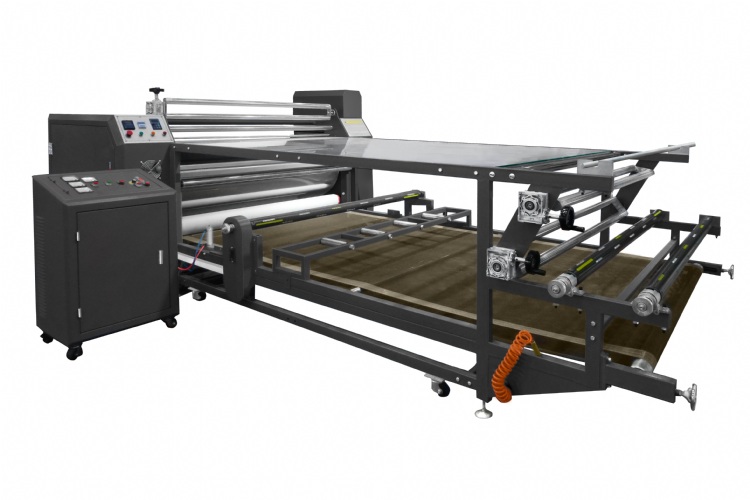

逸東歐洲系多功能轉印機
產品型號:EMT-1742
產品分類:紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他
產品特色
Auto cool-down system(shut down when drop to 100°) & accurate temperature control
Double Auto-alignment system for blanket & belt
Pneumatic blanket tension & auto blanket separation when power off
Hard chrome double layers drum, 100% full oil
Safety device against explosion pressure
Optional adjustable power & separate power box
產品規格
EMT Series |
1742 |
1842 |
2042 |
1760 |
1860 |
2060 |
3260 |
1880 |
2080 |
3280 |
|
Heating Media |
Heating Oil, 100% full |
||||||||||
Voltage |
3 phase, 220V / 380V |
||||||||||
Power(KW) |
25.2 |
27 |
30 |
45.9 |
48.6 |
54 |
85 |
64.8 |
72 |
113 |
|
Diameter |
420mm (16.54”) |
600mm (23.62”) |
800mm (31.50”) |
||||||||
Heat Element |
15pcs |
27pcs |
36pcs |
||||||||
Transfer width |
1.6m |
1.7m |
1.9m |
1.6m |
1.7m |
1.9m |
3.1m |
1.7m |
1.9m |
3.1m |
|
Process path |
Feeding in through top of drum |
||||||||||
Application |
Roll-to-roll & Piece-by-piece |
||||||||||
Rollers |
3 feeding rollers & 2 collecting rollers (1 more shaft can be added for fabric roll collecting) |
||||||||||
Working table |
YES (glass not included) |
||||||||||
Blanket size(mm) |
1650*3250*8 |
1725*3250*8 |
1950*3250*8 |
1650*3850*8 |
1750*3850*8 |
1950*3850*8 |
3150*3850*8 |
1750*4700*8 |
1950*4700*8 |
3150*4700*8 |
|
Machine size(m) |
2.45*1.46*1.43 |
2.55*1.46*1.43 |
2.75*1.46*1.43 |
2.57*1.57*1.7 |
2.67*1.57*1.7 |
2.87*1.57*1.7 |
4.10*1.64*1.7 |
2.84*1.88*2.1 |
3.04*1.88*2.1 |
4.10*1.88*2.1 |
|
Packing size(m) |
2.74*1.54*1.7 |
2.84*1.54*1.7 |
3.0*1.68*1.7 |
2.74*1.68*1.9 |
2.84*1.68*1.9 |
3.0*1.68*1.9 |
4.2*1.74*1.9 |
3.04*2.0x2.3 |
3.14*2.0*2.3 |
4.3*2.0x2.3 |
|
Table size(m) |
2.5/3 |
2.5/3 |
2.5/3 |
2.5 /3 |
2.5 /3 |
2.5 /3 |
2.5 /3 |
2.5 /3 |
2.5 /3 |
2.5 /3 |
|
- Blanket and oil drum are not under warranty
- Other parts are eligible for 12 months warranty under proper use (starting from EXW-factory time)
