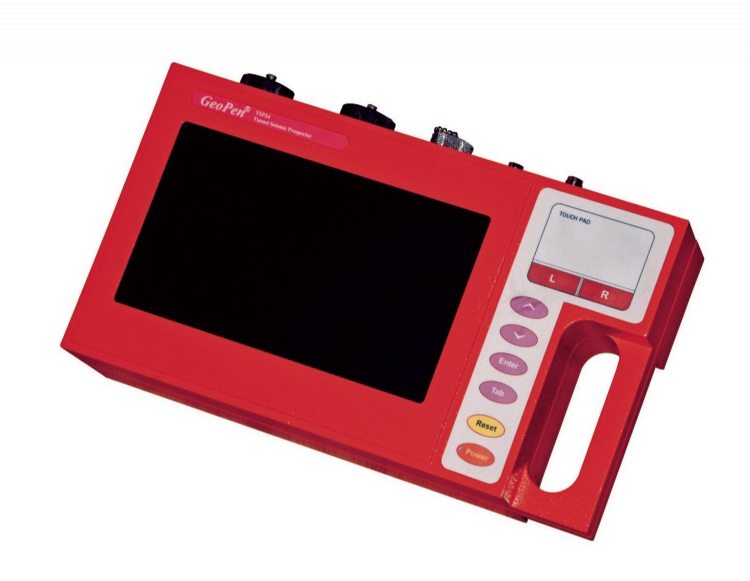

Tunnel Seismic Prediction TSP24



產品型號：TSP24

產品分類：工具機產業機械 / 銑床 / 臥立兩用銑床



立即線上詢問





產品特色



TSP24 Tunnel Geological Advance Detection
Tunnel seismic Prospector

Function:
The TSP24 tunnel geological seismic probing system combines advanced geological surveying technology with modern electronic technology into a high-technology product. The system is primarily used for probing the immediate state and position of geological structures during tunnel excavation; It also conducts evaluations of the rock to guarantee the safe production and accurate workload estimation of the tunnel.
The system is composed of the central unit, sensors, seismic emitter, data processing software and supporting technical service.

Specifications:
Channels No.: 24
Frequency Range: Low frequency channels (24): 0.5 Hz - 10 kHz
high frequency channels (6): 50 Hz - 50 kHz
Preamplifier Gain: 16 - 48 dB
Input Impedance: 20 kOhm
A/D Converter: 24 bit
Sampling Interval: Low frequency channels (24): 0.025 - 5 ms
high frequency channels (6): 0.00625 - 0.4 ms
Dynamic Range: 144 dB
Cross-channel Interference: 100dB
Synchronization Mode: Wired pulse, GPS timing, GFSK radio (433 MHz)
Monitor: 9" (16: 9), 1024X600
Processor: Intel (R) Atom (TM) N270 1.6 GHz
RAM: 1GB
Hard Drive: 160 GB
Size: 320 X 180 X 90 mm
Weight: 4.5 kg
Operating Temperature: -20 to 60 deg C
Power Consumption: 12V / 1.2 A
Built-in Lithium Battery: 7.4V/17.6Ah (10h operating time)
