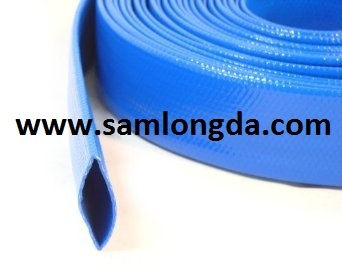

RIEGO Manguera, Plat slangen, Mining layflat hose
產品型號:LFH06
產品特色
Heavy Duty layflat
New Layflat Hose
* High Pressure 10bar hose.
*Light weight, 10%-30% lighter than traditional pvc layflat hose.
產品規格
Samlongda high quality PVC layflat land a heavy duty 10bar for mining and high pressure pumps system.
Heavey duty hose for irrigation, high pressure pump system and mining system.
Heavy duty hose: 9-11bar working pressure !
Model | Size | Thick | Weight | W.P. | B.P. | |
Inch | mm | mm | g/m | bar | bar |
Heavy Duty | 3/4" | 20 | 1.55 | 140 | 10.5 | 31.5 |
1" | 26 | 1.7 | 200 | 10.5 | 31.5 | |
1-1/4" | 33 | 1.45 | 210 | 10.5 | 31.5 | |
1-1/2" | 41 | 1.9 | 290 | 10.5 | 31.5 | |
1-3/4" | 45 | 1.6 | 320 | 8 | 24 | |
1-3/4" | 45 | 2 | 350 | 10.5 | 31.5 | |
2" | 53 | 1.5 | 350 | 8 | 24 | |
2" | 53 | 2.05 | 420 | 10.5 | 31.5 | |
2.5" | 66 | 2.2 | 650 | 10.5 | 31.5 | |
3" | 76 | 2.2 | 800 | 8 | 24 | |
3" | 76 | 2.5 | 850 | 10 | 30 | |
4" | 104 | 2.5 | 1000 | 9 | 27 | |
5" | 127 | 3.1 | 1800 | 8 | 24 | |
6" | 155 | 3.3 | 2000 | 8 | 24 | |
8" | 202 | 2.95 | 2200 | 5 | 15 | |
8" | 202 | 3.15 | 2800 | 6 | 18 |
