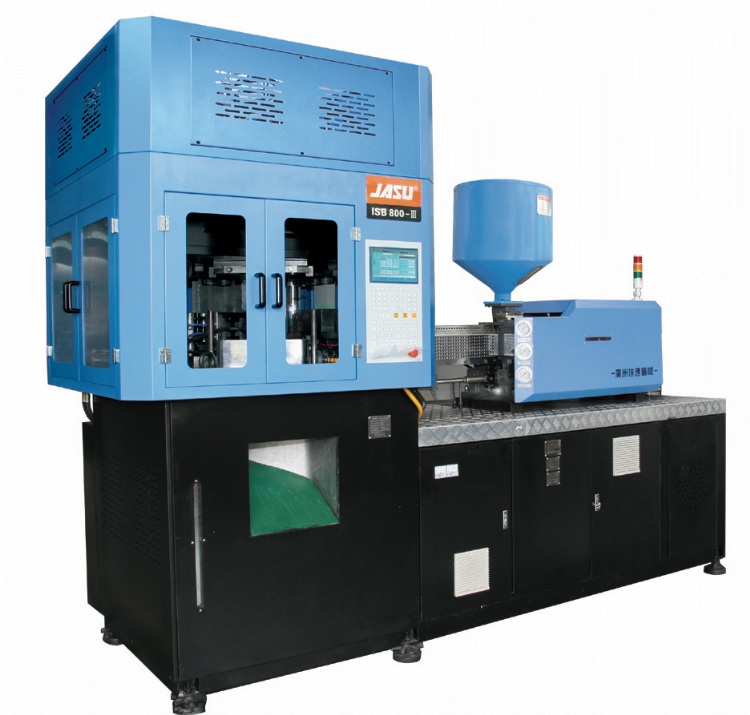

Automatic one-step injection blow molding machine for small bottles
產品型號:ISB800-3
產品特色
JASU ISB800-3 is a one stage injection blow molding machine (not from performs) for PET, PC and PP containers. The machine is capable of accepting 6 cavities.
Fully automatic, single step, injection stretch blow moulding machines produce containers from 0.3 litres up to 1 litres. Widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics and other applications.
A horizontal three station indexing head contains injection, blowing and outfeed stations which operate simultaneously in a fully automatic cycle. Highly efficient with low energy comsuption.
Suitable for use with a wide range of thermoplastic materials, including PET, PP and PC.
All machines are built to ISO9001 standards and CE certified.
Machine Features
*The machine provides fast molding performance without scrap or connecting lines on bottle bottom or side.
*Maximum uniformity of bottle weight, thickness and volume.
*Bottle body, neck and mouth can be varied to meet specific requirements.
*Extremely smooth and elegant bottle surface is ideal for high-quality and high-price packaging.
*This high production machine is capable of producing bottles in multiple cavities at one time.
*Suitable for various materials, such as PET, PE, PP, PS, PC, PETG, PMMA, etc.
*producing various types of bottles.
*Multiple-stage injection
Application
Cosmetic
Medical consumables
Pharmaceutical
Hospital products
Health-care
Tablets containers
Deodorant bottles
產品規格
Injection Blow Molding Machine Parameter |
|||||
Item |
Unit |
Machine Type |
|||
IB500-2 |
ISB800-3 |
ISB800-4 |
|||
Injection Part |
Screw Diameter |
mm |
50 |
40 |
40 |
Screw L/D Ratio |
L/D |
23.2 |
23 |
23 |
|
Screw Speed |
r/min |
0-185 |
0-220 |
0-220 |
|
Injection Weight |
G |
390 |
195 |
195 |
|
Injection Pressure |
Kg/cm2 |
1700 |
1504 |
1504 |
|
Max. Hydraulic Pressure |
Kg/cm |
140 |
140 |
140 |
|
Plasticizing Capacity |
g/s |
24 |
14 |
14 |
|
Injection Rate |
g/s |
128 |
140 |
140 |
|
Clamping Part |
Blow Clamping Force |
Kn |
150 |
80 |
80 |
Clamp Tonnage |
Kn |
600 |
400 |
400 |
|
Wheel Diameter |
mm |
|
800 |
800 |
|
Max. Height of Bottle |
mm |
400 |
145 |
|
|
Open Vertical Mode Trip |
mm |
430 |
430 |
430 |
|
Others |
Max. Pump Pressure |
Mpa |
16 |
16 |
16 |
Motor Oil |
Kw |
18.5 |
18.5 |
18.5 |
|
Electric Power |
Kw |
16 |
13 |
13 |
|
Tank Volume |
L |
400 |
400 |
400 |
|
Dimension of Machine |
m |
4.1x1.45x3.1 |
3.8x1.45x3.0 |
3.8x1.45x3.0 |
|
Machine Weight |
Ton |
5 |
5 |
5 |
