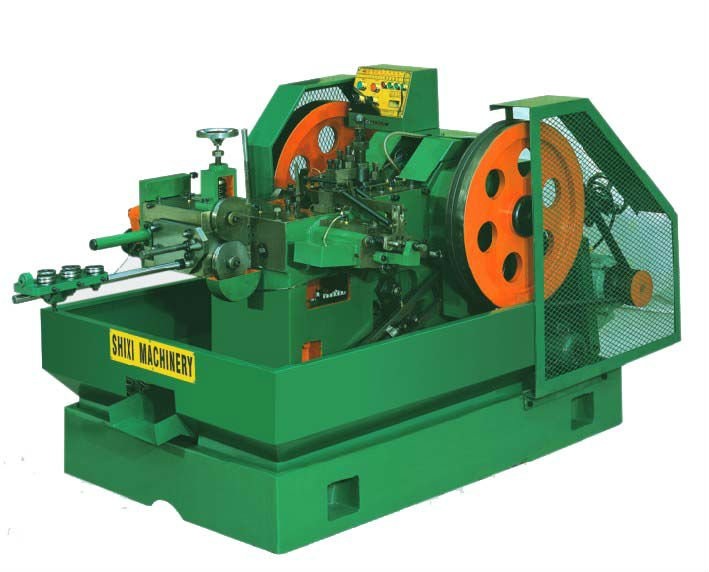

Rivet making machine
產品型號:SX-K20B-E
產品分類:自動化設備/產業機械 / 螺絲,螺帽製造機 / 打頭機
產品特色
Features:
1. The precise and stable structure can make precise/mini rivets with flexibility.
2. China patented united formed punch lifting plank can diminish the cumulative deviation in
assembly to ensure the stability of the lifting system.
3. The flexible lifting system ensures the efficiency of the machine.
4. Slide side guide can diminish the swing of punch holder.
5. Hard and stable foundation improves the rigidity of the machine and the stability of heading.
產品規格
Specifications:
MODEL |
SX-K5A |
SX-K20B-E |
SX-K25A |
Blank Dia. (mm) |
Φ1.2-φ2.8 |
Φ3-φ5.5 |
Φ3-φ6.5 |
Blank Length (mm) |
20 |
50 |
50 |
Capacity (pcs./min.) |
110-150 |
65-80 |
60 |
Stroke (mm) |
38 |
90 |
90 |
1st Die Size (mm) |
Φ20×35 |
φ35×75 |
Φ48×100 |
1st Punch Size (mm) |
Φ18×40 |
φ32×65 |
Φ36×78 |
2nd Punch Size (mm) |
φ18×44 |
φ32×67 |
φ36×80 |
Cut-Off Die Dia. (mm) |
φ13.5×30 |
φ19×40 |
Φ25×50 |
Cutter size (mm) |
44×22×5.8 |
66×36×10 |
75×35×12.5 |
Main Motor (kw) |
1.1 |
3 |
5.5 |
Oil Pump (w) |
180 |
180 |
180 |
Machine Weight (kg) |
550 |
1900 |
2600 |
Overall Size (cm) |
150×75×85 |
240×125×140 |
243×128×148 |
5p&�5t�M~h?~
243×128×148
277×108×117
Remark
Options: 1. Microcomputer (Auto-checker) 2. Counter, 3. Frequency conversion actiyator 4.PKO
Note: PKO is not applicable to SX-5A.
