優越型分條機
產品型號：FSL-T Superior Type
產品特色

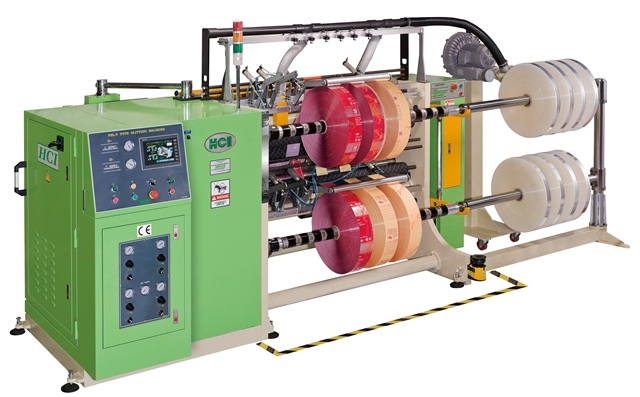

FSL-T1300
FEATURES:
1. Equipped with a high performance PLC micro-processor combined with a touchsensing LCD screen. It features a clear graphic display and ease of operation.
2. Extremely stable rewinding tension is achieved by HCI's self-developed precision friction rewinding ring, automatic side-pressure tension compensation and intelligent rewinding diameter control system.
3. 100 sets of data memory capacity for each setting value allows for recording set data for processing materials.
4. Two independnet rewinding motors for maximum operational convenience. There is a pre-warning for no more materials and an automatic machine stop function for when the set length is reached or the material has been broken.
產品規格
|
規格 |
FSL-T1300 分條機 |
|
機械速度 [m/min] |
300 |
|
原料座形式 |
無軸式原料座(空壓夾取及左右移動) |
|
原料紙管內徑 [mm] |
76 / 3” 或 (152 / 6” 選購) |
|
原料寬度 [mm] |
320 - 1,300 |
|
最大原料直徑 [mm] |
1,000 |
|
原料糾偏系統 |
印刷線 / 邊 |
|
糾偏系統可移動範圍 [mm] |
+/- 50 |
|
分條方式 |
平刀溝輪 / 上下圓刀 |
|
分條廢邊 |
真空式廢料處理裝置 |
|
最小分條寬度 [mm] |
50 |
|
最大收料直徑 [mm] |
600 |
